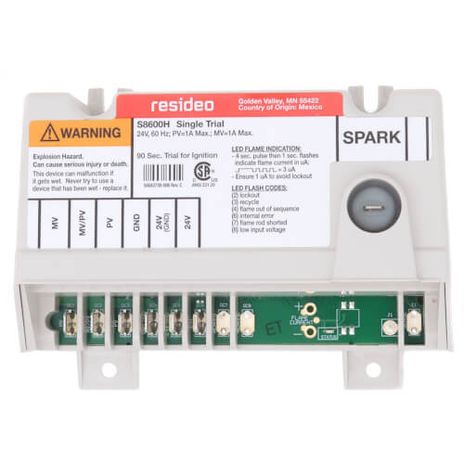

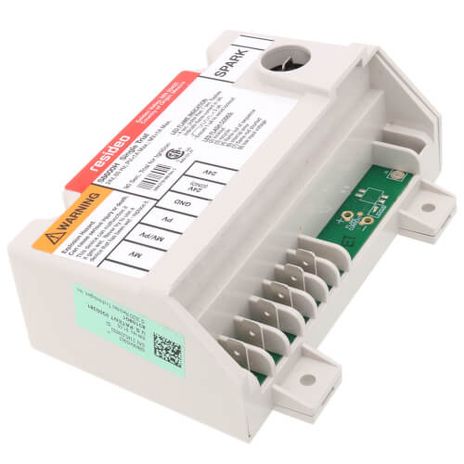

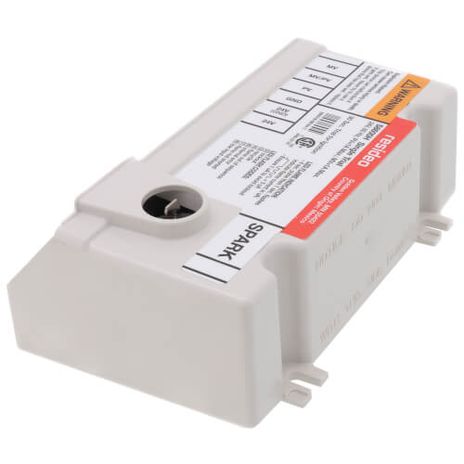

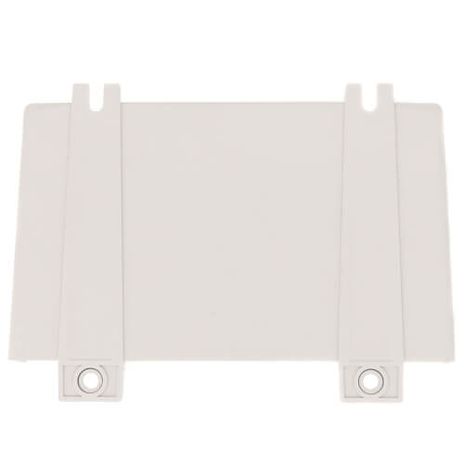

Resideo S8600H3002

Intermittent Pilot Control for LP \& NG (90 Second Trial Time \& Lockout)

These ignition modules provide ignition sequence, flame monitoring and safety shutoff for intermittent pilot central furnaces and heating appliances.

Features:

• Provide up to 1.0 A pilot and 1.0 main valve current rating.
• Use a separate igniter and sensor (Q179C with igniter and sensor mounted on one bracket, or Q354 sensor with Q345, Q346, Q348, Q362 or Q381 igniter-sensor recommended.)
• Can be used on natural on LP gas; they provide 100 percent shutoff on ignition failure.
• Lock out on shutoff.
• Manual reset is required.

Technical Specifications:

• Ignition System Type: Intermittent Pilot
• Ignition Sequence: Lockout
• Typical Gas Control: VR8204, VR8304
• Type of Gas: Natural or LP
• Flame Sense: Single Rod
• Ignition Source: Internal high voltage spark generator
• PrePurge: None
• Ignition Trials To Lockout: 1
• Lockout Timing: 90 seconds
• Ignition Trial Time (sec): 90 sec
• Maximum Valve Load @ 24 Vac (Amps): 1A Pilot, 1A Main @ 24Vac
• Typical Ignition Hardware: Q345, Q3451
• Dimensions: 3 15/16 in. high x 5 7/16 in. wide x 2 ⅝ in. deep
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Approvals, CSA: Design Certified
• Flame Failure Response Time (sec): 2 seconds maximum
