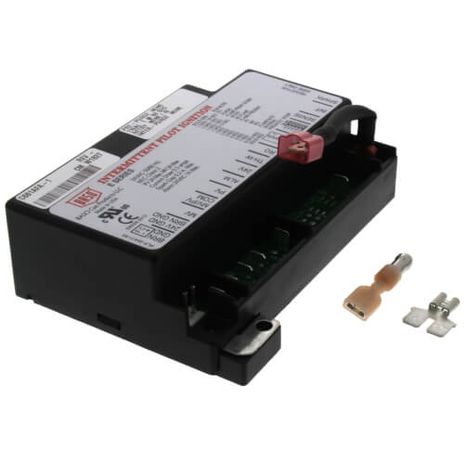

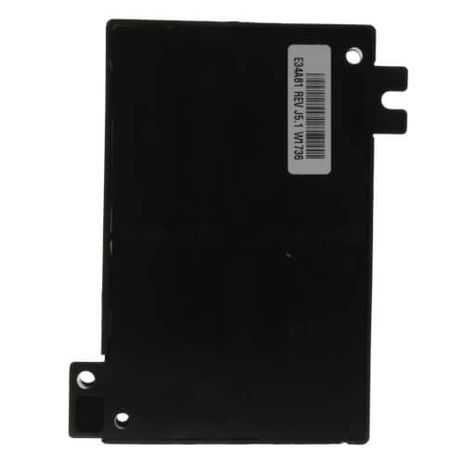

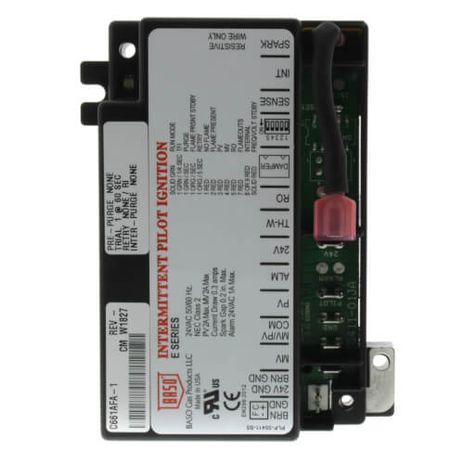

BASO C661AFA-1C

24V Intermittent Pilot Ignition Control w/ Rollout Switch

The C661AFA Intermittent Pilot Ignition Control is a safety control designed for indirect burner ignition and supervision, for use with all gases and applicable to gas-fired appliances.

The C661AFA is a microprocessor based ignition control. The microprocessor provides reliable software control of all timings and operates a diagnostic Light-Emitting Diode (LED). It provides ignition sequence, flame monitoring, and safety shutoff for intermittent pilot boilers, furnaces and other heating appliances.

Features:

• Pre-Purge: None
• Retry: none
• Trial for Ignition: 50 Seconds
• Inter-Purge: 15 seconds
• PV: 1A Max
• MV: 2A Max
• Current Draw: 0.2 Amps
• Spark Gap 0.2 IN. Max
