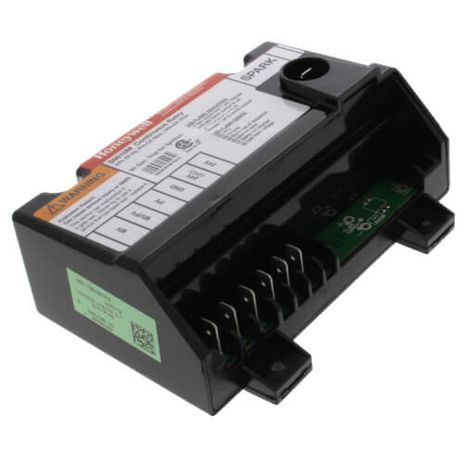

Resideo S8610M3009

IGNITION MODULE, 90 SEC IGN TRIAL

Note: Image may not be an exact representation of the item. The item will either have a black or white plastic cover.

Overview

Provide electronic control of intermittent pilot ignition systems used on gas-fired furnaces, boilers and other heating appliances.

Features

• Provide ignition sequences, flame monitoring and safety shutoff for intermittent pilot central furnaces and heating appliances.
• Functional equivalent of S86, S860, and S90 modules. Include spark cable adapter to allow field replacement of S86, S860, and S90 without replacing existing spark cable.
• Include relay contacts for use with any intermittent pilot gas control string with maximum 1.0A pilot and 2.0A main valve rating; Honeywell VR8204, VR8304, or VR8440 combination gas control recommended.

Specifications

• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Flame Failure Response Time (sec): 2 seconds maximum
• PrePurge: None
• Ambient Temperature Range (F): -40 F to +175 F
• Ignition System Type: Intermittent Pilot
• Ignition Sequence: Continuous Retry
• Typical Gas Control: VR8204, VR8304
• Type of Gas: Natural or LP
• Flame Sense: Single Rod
• Ignition Source: Internal high voltage spark generator
• Ignition Trials To Lockout: continuous retry
• Lockout Timing: continuous retry
• Ignition Trial Time (sec): 90 sec
• Maximum Valve Load @ 24 Vac (Amps): 1A Pilot, 2A Main @ 24Vac
• Typical Ignition Hardware: Q345, Q3451, Q3452
• Between Trial Time (sec): 5 minute delay after failed trial for ignition.
