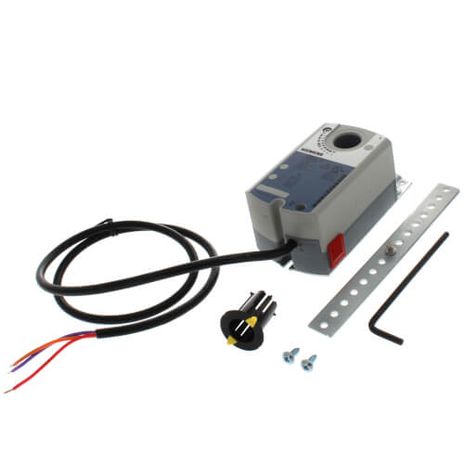

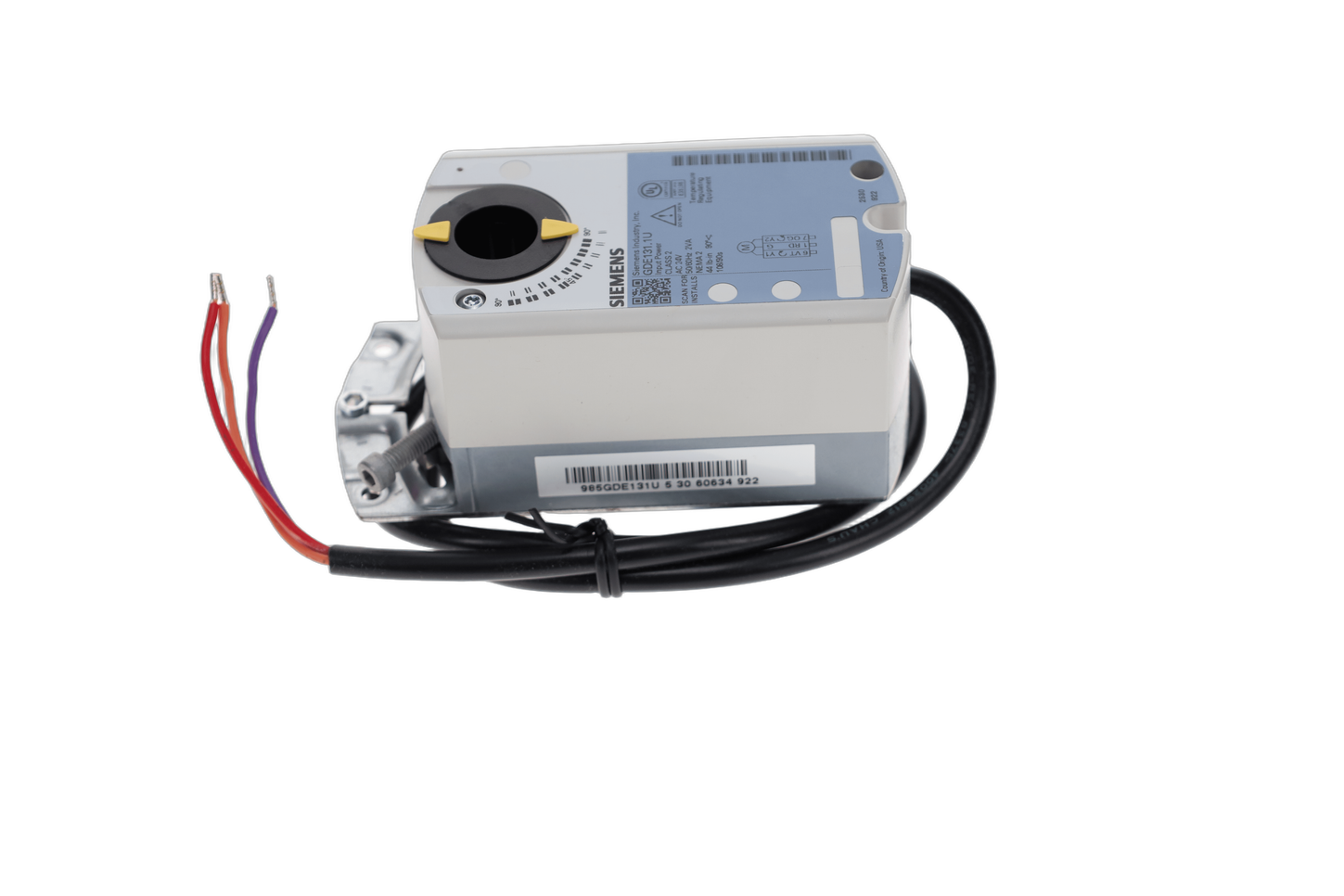

Siemens GDE131.1U
SKU: CS120776MPN: GDE131.1UUPC/EAN: 1PGDE131.1U
Non-spring Return, 44 lb-in (5 Nm), 24 Vac, Floating Control, 90 sec Run
$82.83
Unit91 in stock
Product Details
OpenAir™ GDE Series Electric Damper Actuator, rotary, non-spring return, 44 lb-in (5 Nm), 24 Vac, floating control, 90 sec run time
Attributes
| Actuation Style | Rotary |
| Actuator Type | Non-spring return |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | Floating control/2-position |
| Fail Safe | No |
| Frequency | 50/60 Hz |
| Material Housing | NEMA Type 2, IP54 according to EN 60 529 |
| Operating Voltage | 24 VAC |
| Plenum Or Standard Rating | Standard |
| Position Feedback | No |
| Positioning Time | 50 Hz:108 s;60 Hz:90 s |
| Power Consumption | 2.3 VA |
| Supply Voltage | 24 VAC |
| Torque | 44 lb-in |
Specifications
| SKU | CS120776 |
|---|---|
| MPN | GDE131.1U |
| UPC/EAN | 1PGDE131.1U |
