Siemens GCA221.1U
SKU: CS411201MPN: GCA221.1UUPC/EAN: 7612914018304
Spring Return, 160 lb-in (18 Nm), 120 Vac, 2-position Control, 90 sec Run
$325.30
Unit4 in stock
Product Details

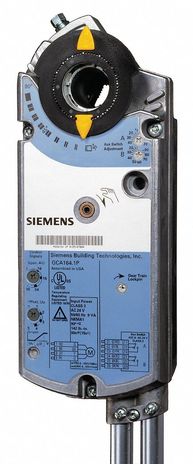

OpenAir™ GCA Series Electric Damper Actuator, rotary, spring return, 160 lb-in (18 Nm), 120 Vac, 2-position control, 90 sec run time
Attributes
| Actuation Style | Rotary |
| Actuator Type | Spring return |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 2-position |
| Fail Safe | Yes |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
| Operating Voltage | 120 VAC |
| Plenum Or Standard Rating | Standard |
| Position Feedback | No |
| Positioning Time | Open:90 s;Close:15 s |
| Power Consumption | Running: 8 VA, Holding: 6 VA |
| Supply Voltage | 120 VAC |
| Torque | 160 lb-in |
Specifications
| SKU | CS411201 |
|---|---|
| MPN | GCA221.1U |
| UPC/EAN | 7612914018304 |
