Siemens GDE131.1P
SKU: CS271838MPN: GDE131.1PUPC/EAN: 804766000218
Non-spring Return, 44 lb-in (5Nm), 24 Vac, Floating Control, 90sec Run, Plenum
$89.06
Unit34 in stock
Product Details

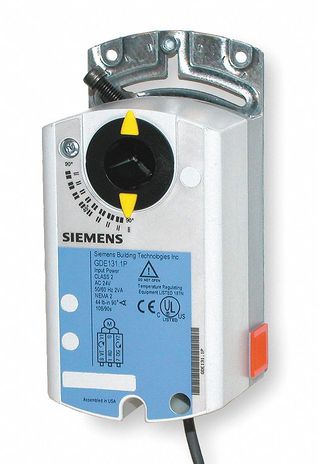

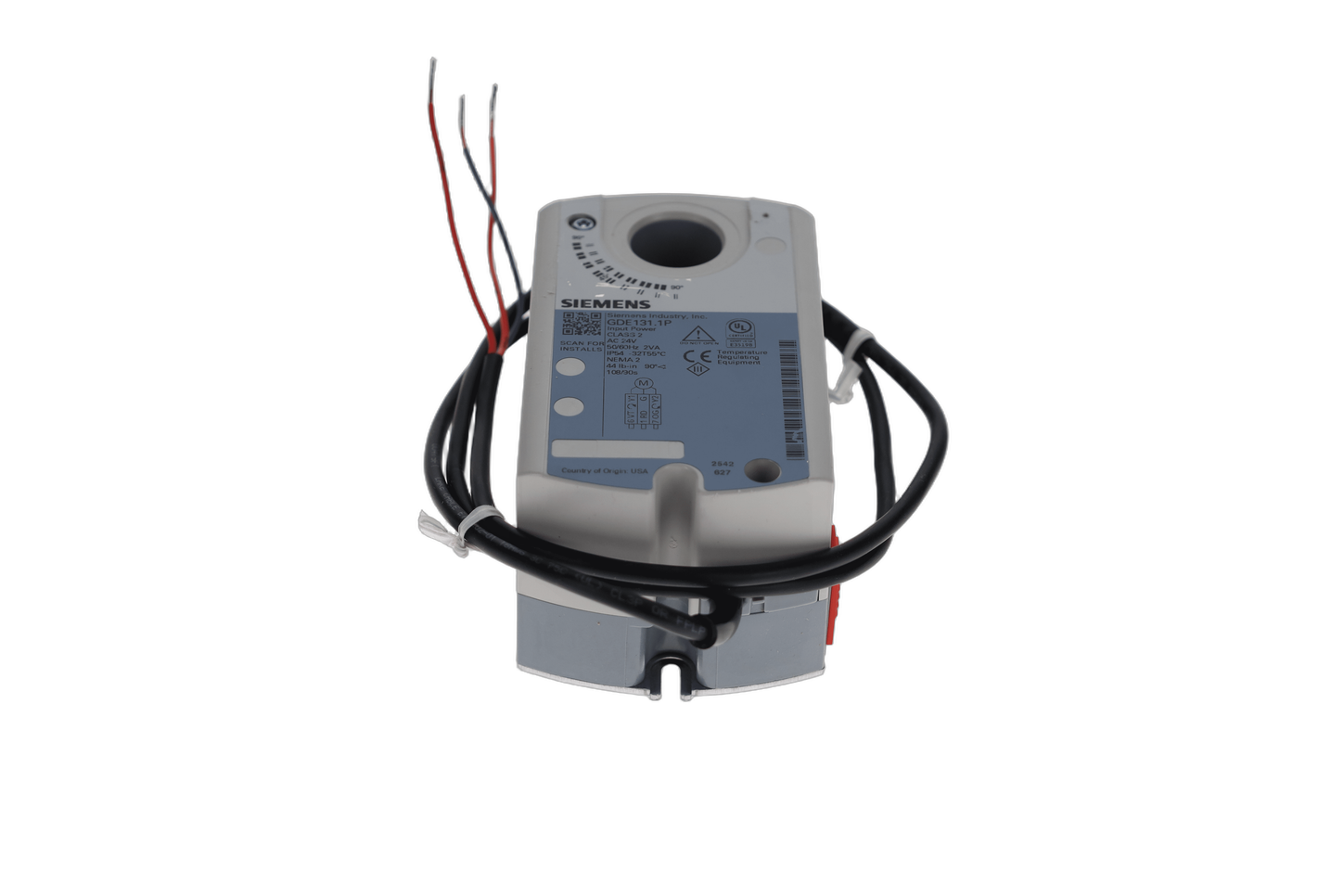

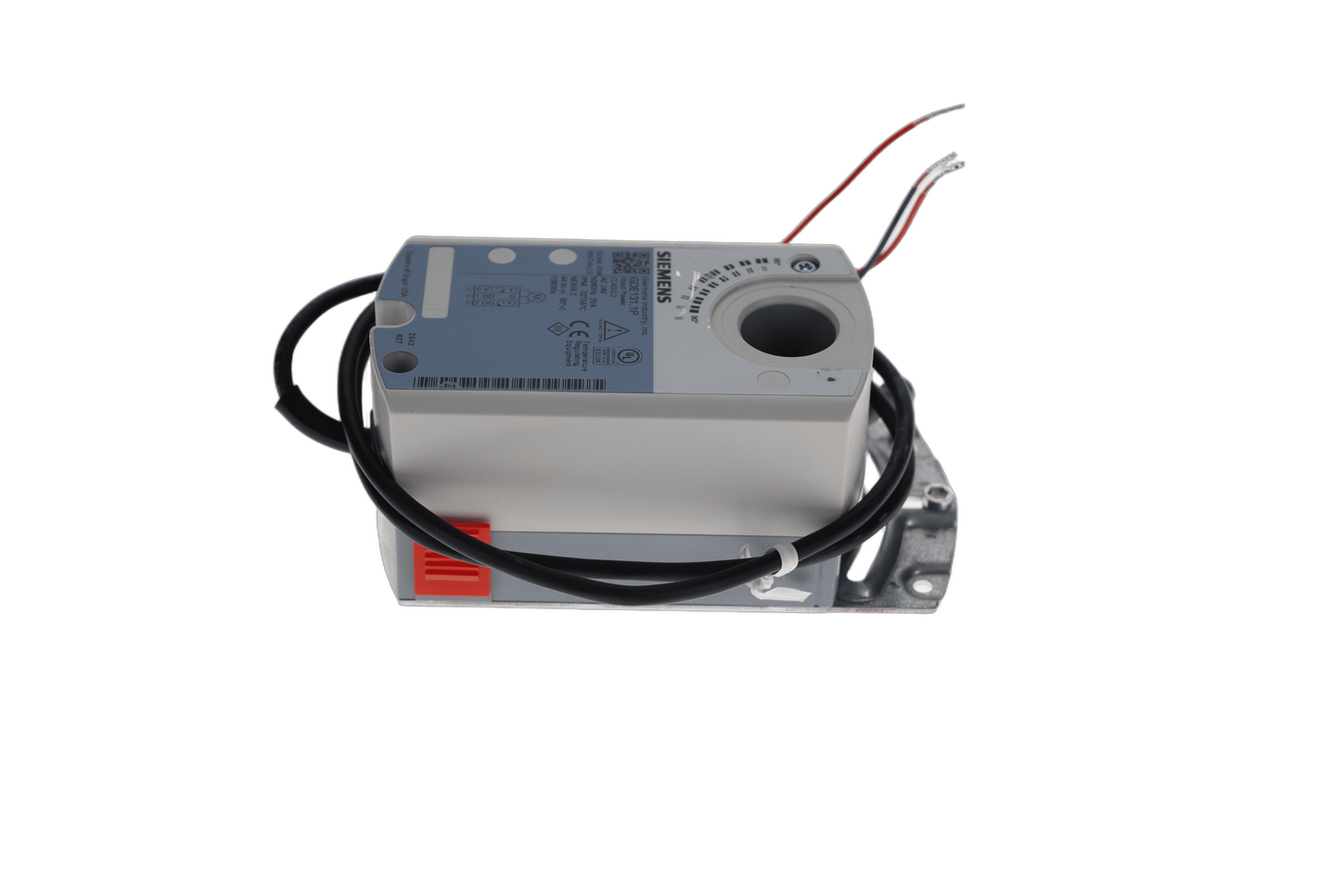

OpenAir™ GDE Series Electric Damper Actuator, rotary, non-spring return, 44 lb-in (5 Nm), 24 Vac, floating control, 90 sec run time, plenum rated
Attributes
| Actuation Style | Rotary |
| Actuator Type | Non-spring return |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | Floating control/2-position |
| Fail Safe | Yes |
| Frequency | 50/60 Hz |
| Material Housing | NEMA Type 2, IP54 according to EN 60 529 |
| Operating Voltage | 20.4…28.8 V24 V#AC |
| Plenum Or Standard Rating | Plenum |
| Position Feedback | No |
| Positioning Time | 50 Hz:108 s;60 Hz:90 s |
| Power Consumption | 2.3 VA |
| Supply Voltage | 24 VAC |
| Torque | 44 lb-in |
Specifications
| SKU | CS271838 |
|---|---|
| MPN | GDE131.1P |
| UPC/EAN | 804766000218 |
