Siemens GIB141.1P
SKU: CS672198MPN: GIB141.1PAlternate Part #: SMNS-GIB131.1PUPC/EAN: 804766015861
Non-spring Return, 310 lb-in, 24Vac/dc, Floating Control, 125sec Run, Plenum
$295.90
UnitAvailable on backorder
Product Details
OpenAir™ GIB Series Electric Damper Actuator, rotary, non-spring return, 310 lb-in (35 Nm), 24 Vac/dc, floating control, 125 sec run time, plenum rated
Attributes
| Actuation Style | Rotary |
| Actuator Type | Non-spring return |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | Floating control/2-position |
| Fail Safe | No |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 1, die-cast aluminum alloy enclosure |
| Operating Voltage | 24 VAC |
| Plenum Or Standard Rating | Plenum |
| Position Feedback | No |
| Positioning Time | 50 Hz:150 s;60 Hz:125 s |
| Power Consumption | 7 VA / 7 W |
| Spring Return Function | Non-spring return functionality |
| Supply Voltage | 24 VAC |
| Torque | 310 lb-in |
Specifications
| SKU | CS672198 |
|---|---|
| MPN | GIB141.1P |
| Alternate Part # | SMNS-GIB131.1P |
| UPC/EAN | 804766015861 |
You may also like
Siemens GIB132.1U
Contact us for pricing and availability
Siemens GIB136.1U
Discontinued - Contact Us For Pricing & Availability
Siemens GIB161.1U
$363.59Unit
Siemens GEB161.1U
$346.40Unit
Siemens GQD131.1P
$216.65UnitSiemens GIB136.1P
Contact us for pricing and availabilitySiemens GIB131.1U
Discontinued - Contact Us For Pricing & Availability
Siemens GDE131.1P
$89.06Unit

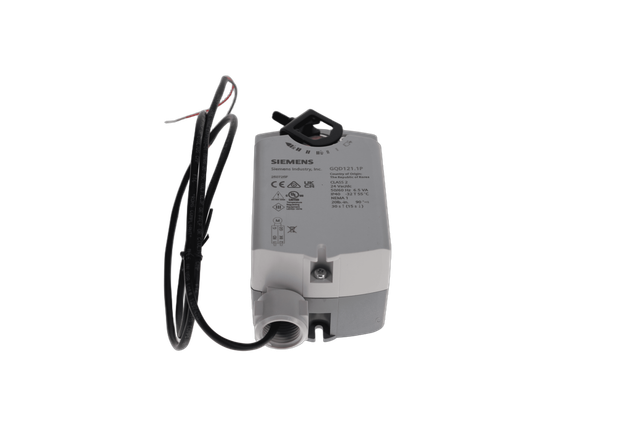

Siemens GQD121.1P
