Eaton E57-08GS01-G

Name: Eaton E57-08GS01-G
Brand: Eaton
SKU: CS4872605
Price: 118.36 USD
Availability: OutOfStock

SKU: CS4872605MPN: E57-08GS01-GUPC/EAN: 782114288504

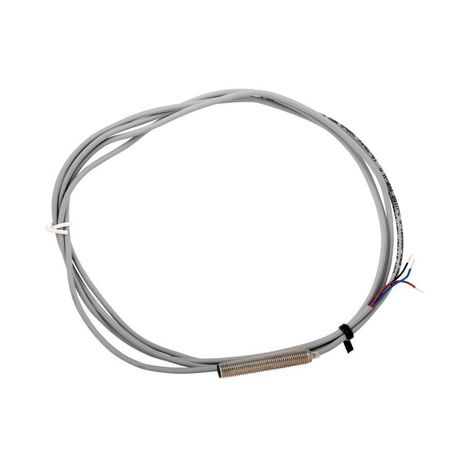

Eaton E57 inductive proximity sensor

Eaton E57-08GS01-CDB, E57-08GS01-CNB, E57-08GS01-D, E57-08GS01-DDB, E57-08GS01-G, E57-08GS01-G1, E57-08GS01-G1DB, E57-08GS01-G1NB, E57-08GS01-GDB, E57-08GS01-GNB

Product Details

Inductive Global Proximity Sensor, E57, 1 mm range, Straight, 8 mm, Shielded, Output ON, 3-wire, 6.6 ft, 100 mA at 10-30 Vdc, \<1.0% sensing range, PVC, PNP open collector, NO, 10-30 Vdc

Attributes

Accuracy	< 1.0% sensing range
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	PNP open collector, NO
Contact Rating	100 mA at 10-30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output ON
Maximum Dc Current	100 mA
Number Of Wires	3
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit
Series	E57
Size	8 mm
Temperature Rating	-13 to 158 °F
Type	E57
