Schneider Electric MS41-6343
SKU: CS1065340MPN: MS41-6343UPC/EAN: 711426072945
Act (MS41-6343): Elec, Prop, 2-10 VDC/4-20 mAdc, NSR, 22-30 VDC/24 VAC/VDC, Plen, 300 in-lb, Rotary, N1/N4, SmartX
$1,073.85
Unit5+ Units Available at Factory - Ships Same/Next Business Day
Product Details
Actuator: (MS41-6343):
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Non-Spring Return
- Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
- Leads and Connections: 3 ft Plenum
- Torque: 300 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1, NEMA 4
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: Mx4x-6xxx
- Actuator Use: Dampers, Globe Valves
Product Alert: Linkage required for Globe Valve Assembly use. NEMA 4 with customer supplied water tight conduit connectors.
Attributes
| Us Rated Supply Voltage | 22…30 V DC 24 V AC/DC |
| Actuator | rotary |
| Actuator Rotation | 92 ° |
| Ambient Air Temperature For Operation | -31.6-60 °C |
| Ambient Air Temperature For Storage | -40-71 °C |
| Analogue Input Range | 2…10 V DC 4…20 mA DC |
| Control Type | automatic reset |
| Electrical Insulation Class | class II |
| Hold In Power Consumption In Va | 2.2-2.2 VA DC 4-4 VA AC |
| Ip Degree Of Protection | IP10 IP56 |
| Material | die cast aluminium: housing |
| Motor Type | brushless DC motor |
| Power Consumption In Va | 3.4 VA DC 5.6 VA AC |
| Power Consumption In W | 3.6 W |
| Product Destination | dampers globe valve |
| Product Or Component Type | actuator |
| Relative Humidity | 5-95 % non-condensing |
| Switch Function | No |
| Targeted Region | North America.# #Australia. |
| Taxoclass Id | PTC_D54013_XXX |
| Tightening Torque | 300 lb.in# #34 N.m |
Specifications
| SKU | CS1065340 |
|---|---|
| MPN | MS41-6343 |
| UPC/EAN | 711426072945 |
You may also like

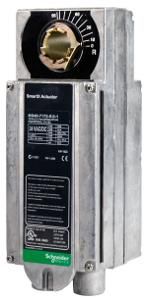

Schneider Electric MS40-7171
$1,341.08Unit
Schneider Electric MS4D-7033-160
Contact us for pricing and availability
Schneider Electric M133A01
Contact us for pricing and availability
Schneider Electric MA40-7173

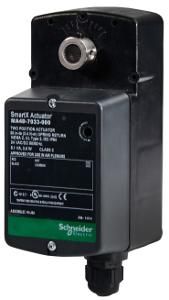

$985.56UnitSchneider Electric MS4D-7033-100
$341.29UnitSchneider Electric MS4D-8033-100
$341.29UnitSchneider Electric MF41-6343
$1,067.11Unit
Schneider Electric VS-8303-516-5-16
$7,768.64Unit

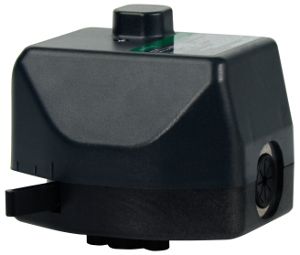

Schneider Electric M123A01
