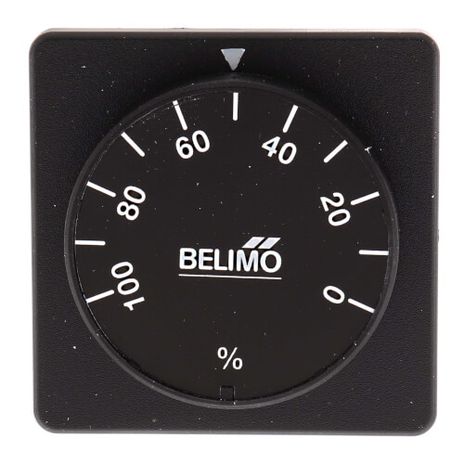

Belimo SGF24
SKU: CS1054222MPN: SGF24
Positioner for front-panel mounting
$115.27
Unit5+ Units Available at Factory - Ships Same/Next Business Day
Product Details
The SGF24 positioner is for flush mounting. It is intended for the remote control of modulating actuators or for use as a minimum positioner (providing a minimum limit for the output signal from a modulating controller). The control range is 0 to 100% of the angle of rotation of the actuator.
Attributes
| Nominal Voltage | AC/DC 24 V |
| Power Consumption In Operation | 0.3 W |
| Ambient Humidity | max. 95% r.H., non-condensing |
| Ambient Temperature | -4…122°F [-20…50°C] |
| Storage Temperature | -40…176°F [-40…80°C] |
| Degree Of Protection Iec/En | IP40 |
| Connection | terminals |
| Servicing | maintenance-free |
| Nominal Voltage Dc | 24 V |
| Nominal Voltage Ac | 24 V |
| Nominal Voltage Range | AC 19.2…28.8 V / DC 19.2…28.8 V |
| Mode Of Operation | Type 1 |
Specifications
| SKU | CS1054222 |
|---|---|
| MPN | SGF24 |
You may also like

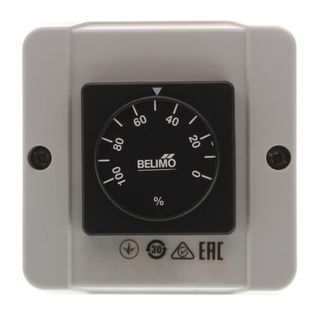

Belimo SGA24
$131.73Unit
Belimo 22RTM-59-1
Contact us for pricing and availability
Belimo LMV-D3-MFT
$313.30UnitBelimo LMV-D3-MP
$313.30Unit
Belimo NMV-D3-MFT
$365.73Unit

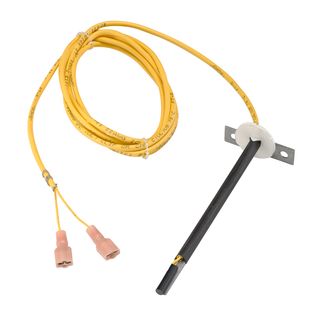

Belimo ECON-ZIP-10K
$32.07Unit
Belimo SF24A-MOD
$572.87Unit

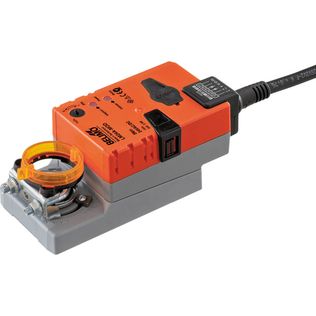

Belimo LM24A-MOD
$302.90Unit
Belimo ECON-ZIP-BASE
$604.07Unit

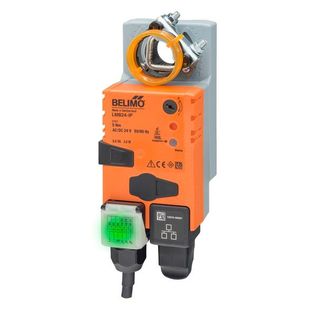

Belimo LMB24-IP
