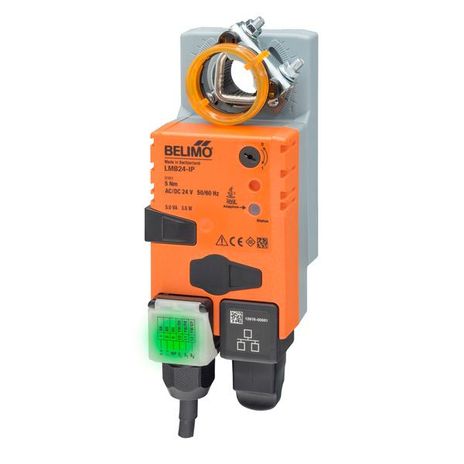

Belimo LMB24-IP

Name: Belimo LMB24-IP
Brand: Belimo
SKU: CS3350092
Price: 348.83 USD
Availability: InStock

SKU: CS3350092MPN: LMB24-IP

Damper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 24 V, modulating, Cloud, communicative, Hybrid, BACnet IP, Modbus TCP

$348.83

Unit

3 in stock

Quantity

remove

add

Documents

Belimo LMB24-IP Data Sheet

Product Details

Damper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 24 V, modulating, Cloud, communicative, Hybrid, BACnet IP, Modbus TCP

Attributes

Control	modulating Cloud communicative Hybrid
Fail-Safe	Non-Spring Return
Torque	45 in-lb
Nominal Voltage	AC/DC 24 V
Transformer Sizing	4.5 VA (class 2 power source)
Enclosure	UL Enclosure Type 1
Power Consumption In Operation	3 W
Power Consumption In Rest Position	3 W
Electrical Connection	18 GA appliance cable, ½” conduit connector and RJ45 socket (ethernet)
Overload Protection	electronic throughout 0…95° rotation
Operating Range	Hybrid via 2…10 V
Operating Range Y Variable	0.5…10 V
Angle Of Rotation	Max. 95°, adjustable with mechanical stop
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanically, 30…65 mm stroke
Running Time (Motor)	default 150 s, variable 70…220 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 1
Connection	cable
Servicing	maintenance-free
Housing Material	UL94-5VA
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Nominal Voltage Range	AC 19.2…28.8 V / DC 21.6…26.4 V
Noise Level, Motor	35 dB(A)
Mode Of Operation	Type 1
Torque Motor	45 in-lb [5 Nm]
Quality Standard	ISO 9001
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Fail-Safe Function	Non fail-safe
Control Type Web	Communicative BACnet IP Cloud Modbus TCP
Fail-Safe	NO
