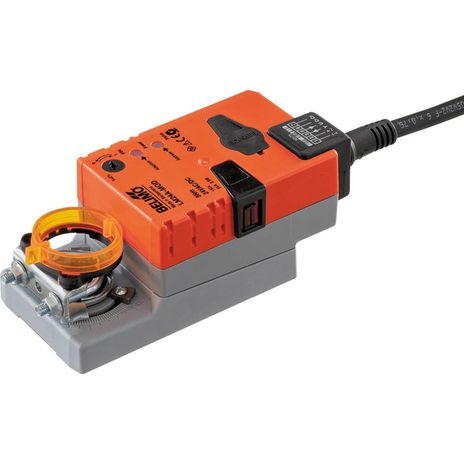

Belimo LM24A-MOD

Name: Belimo LM24A-MOD
Brand: Belimo
SKU: CS3350578
Price: 302.90 USD
Availability: OutOfStock

SKU: CS3350578MPN: LM24A-MOD

Rotary Actuator, 45 in-lb [5 Nm], AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, 150 s (35...150 s), IP54

$302.90

Unit

Available on backorder

Quantity

remove

add

Documents

Rotary Actuator, 45 in-lb [5 Nm], AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, 150 s (35...150 s), IP54

Control	modulating communicative Hybrid
Torque	45 in-lb
Nominal Voltage	AC/DC 24 V
Enclosure	UL Enclosure Type 2
Power Consumption In Operation	2.5 W
Power Consumption In Rest Position	1.3 W
Operating Range Y Variable	0.5…10 V
Angle Of Rotation	Max. 95°
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanically, pluggable
Running Time (Motor)	150 s / 90°
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Movement Type	Rotative
Servicing	maintenance-free
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Nominal Voltage Range	AC 19.2…28.8 V / DC 21.6…28.8 V
Noise Level, Motor	35 dB(A)
Mode Of Operation	Type 1
Torque Motor	45 in-lb [5 Nm]
Fail-Safe Function	Non fail-safe
Control Type Web	BACnet MS/TP Modbus RTU MP-Bus DC 2…10 V DC 0.5…10 V Hybrid (communicative / analog)
Running Time Selection	20…49 s 50…79 s 80…99 s 100…150 s adjustable
Application Fire & Smoke	Air supply
