Fireye All Products

Programmer. Selectable purge (30 sec min.), 10 and 15 sec. TFI, non-recycle.

Programmer, Selectable recycle/non-recycle function, TFI, and purge timing. Pilot cutoff, pilot stabilization, check-run switch.

Programmer, Relight function.

Programmer. Selectable purge (30 sec min.), 5 and 10 sec. TFI, non-recycle, early spark termination.

Heat insulator, ½” NPT connector for 48PT, UV1A.

Programmer. Selectable purge (30 sec min.), 10 and 15 sec. TFI, recycle.

Chassis, For manually ignited burners, 120 VAC.

Programmer Module with Lockout

Program Module 30 sec. Purge 5/10 TFI

Programmer. Selectable purge (15 sec min), 5 and 10 sec TFI, selectable recycle/non-recycle, no modulation.

Programmer, Selectable recycle/non-recycle function, TFI, and purge timing.

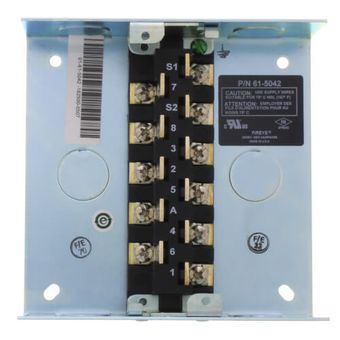

Open Wiring Base Cabinet Mount M-Series

Micro M Programmer Relite

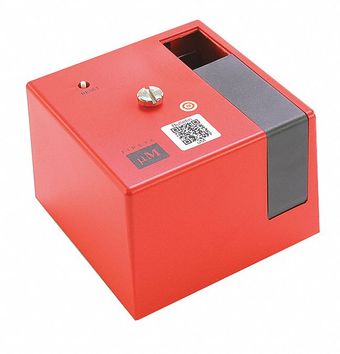

120 VAC, 50/60 Hz Chassis with remote reset.

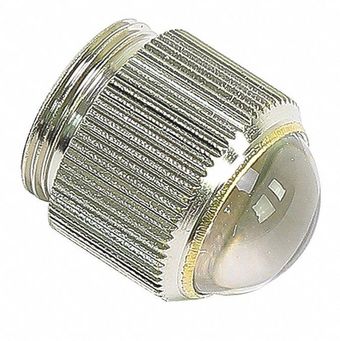

Magnifying lens cap (standard) for 48PT scanners.

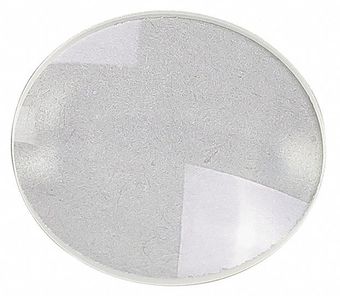

Quartz lens for 60-1290 union (½”).

Flame rod, 12”, ½” mount (Auburn P/N FRS-2-12).

Programmer. Selectable purge (0 sec min), 5 and 10 sec TFI, selectable recycle/non-recycle, no modulation.

SERVO Motor

ED510 remote display cable with RJ45 connector - 4 feet.

Parallel Positioning Control

Chassis, 120 VAC, 50/60 Hz with IR Auto-Check amplifier. UL, FM, CE Approved. Special application only, consult factory.

Programmer. Selectable purge (30 sec min.), selectable TFI via ED510 display, non-recycle.

Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, post purge, prove open at start, 8 sec pilot stabilization.

Programmer, 15 sec purge, provides interrupted ignition, interrupted pilot, non re-cycle on flame fail.

Serviceman’s display kit. Consists of ED510 with back plate, MED2, and ED580-4.

120 VAC, 50/60 Hz Chassis with remote reset.

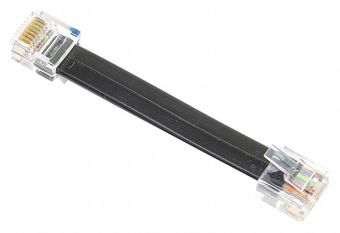

ED510 remote display cable with RJ45 connector - 1 ¼ inch.

Programmer. Selectable purge (90 sec min), 5 and 10 sec TFI, selectable recycle/non-recycle, no modulation.

UL/CE Approved standalone parallel positioning controller, with up to ten (10) selectable FX servo-motor drives. 120VAC operation, use with plug-in…

Multi-port cable adaptor for E110 accessories.

SERVO-Motor 24VDC Terminal Block

Programmer, Non-recycle on flame fail, 10 second PTFI.

Programmer, Immediate ignition and pilot after limits are closed, 10 sec PTFI (fixed), 10 sec MTFI, intermittent pilot, non-recycle on flame fail.

Programmer. Selectable purge (30 sec min.), pilot stabilization, non-recycle, 10 and 10 sec TFI.

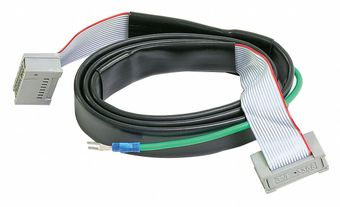

Expansion Cable 3 ft

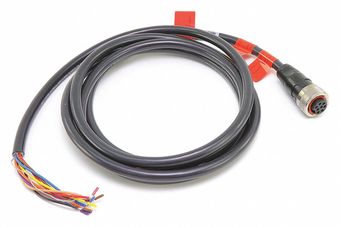

Factory wired cable assembly (59-546) for InSight II and Phoenix quick disconnect version. 3 meters / 10 ft.

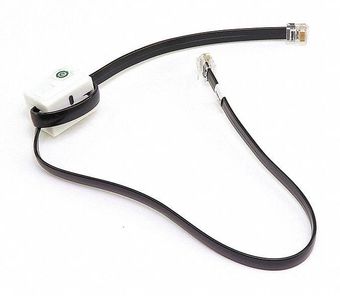

ED510 remote display cable with RJ45 connector - 2 feet.

Programmer Module 10 sec. MTFI

Programmer Module 2 Stage Capability

Keypad selectable parameters, non-recycle operation, modulation, open/closed damper proving, 4 sec FFRT. Powered inputs provide indefinite hold, pi…

MicroM chassis with local reset; 120 VAC, 50/60 Hz, provides independent relay outputs on terminals 3 and 4. For use with MEP300 and MEP600 series …

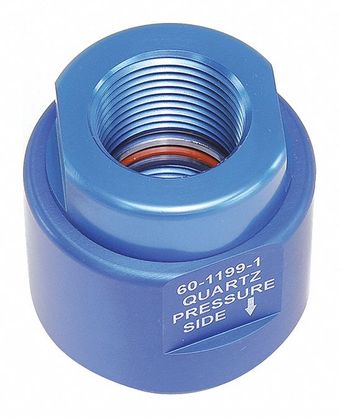

Sealing coupling with quartz window, 1” NPT. Replaces 60-1199

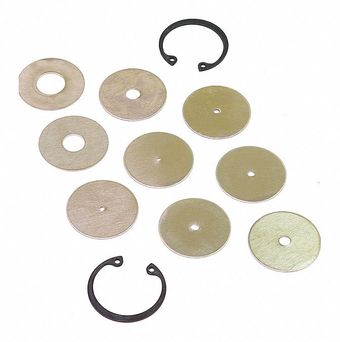

2 through 10 orifice set for scanners.

Expansion module cable, 6 ft length.

Flame rod, 24”, ½” mount (Auburn P/N FRS-2-24).

Flame amplifier, 120/230 VAC, high discrimination. Consists of 60-2203-2, 60-2207-2, and 60-2301.

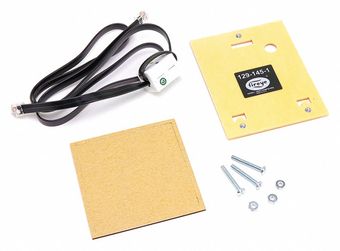

Remote display (ED510) mounting kit with 4’ cable.

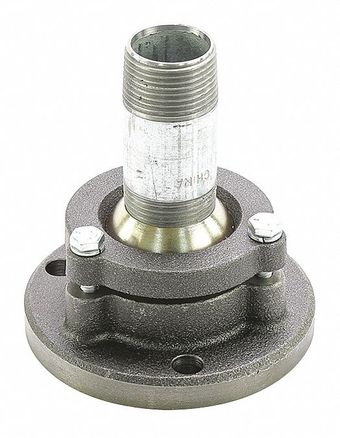

Swivel mount adaptor, 1” NPT for 45UV5, 45RM, 45FS scanners.

Programmer, 5 sec TFI, lockout on flame failure.

Quick disconnect for 45UV5, 45RM1, 45RM2.

Integrated flame rectification comtrol, 120 VAC, 50 / 60 Hz, 5 sec purge, 10 sec PTFI, recycle operation. Can be used with UV90L-2 UV scanner, .

Flame Rode/Photocell A 0.8 FFRT

Firetron cell for 48PT2 only.

UV Scanner

InSight II Flame Scanner - Dual detector (IR and UV) with single quick disconnect to connect to InSight I cable connector (e.g., 129-164). NEMA 4X,…

Programmer. Selectable purge (30 sec min.), 10 and 30 sec. TFI, non-recycle.

Rectification Flame Amplifier

Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, post purge, prove open at start, 8 sec pilot stabilization, 10 sec m…

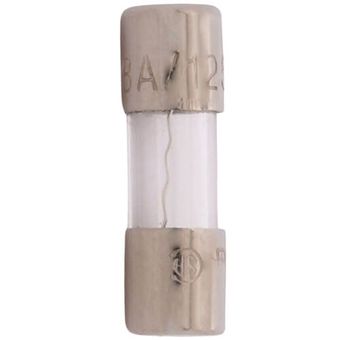

Fuse
