Fireye All Products

Programmer, Relight function.

Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, post purge, prove open at start, 8 sec pilot stabilization.

Programmer, 15 sec purge, provides interrupted ignition, interrupted pilot, non re-cycle on flame fail.

120 VAC, 50/60 Hz Chassis with remote reset.

SERVO-Motor 24VDC Terminal Block

Programmer Module 10 sec. MTFI

MicroM chassis with local reset; 120 VAC, 50/60 Hz, provides independent relay outputs on terminals 3 and 4. For use with MEP300 and MEP600 series …

Sealing coupling with quartz window, 1” NPT. Replaces 60-1199

Expansion module cable, 6 ft length.

Swivel mount adaptor, 1” NPT for 45UV5, 45RM, 45FS scanners.

Programmer, 5 sec TFI, lockout on flame failure.

Quick disconnect for 45UV5, 45RM1, 45RM2.

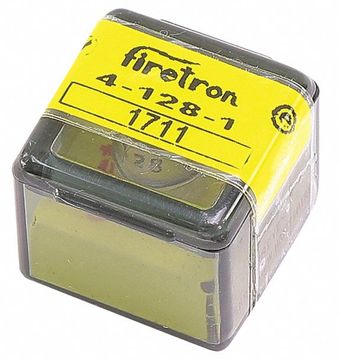

Firetron cell for 48PT2 only.

Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, post purge, prove open at start, 8 sec pilot stabilization, 10 sec m…

Quartz lens assembly for 45UV5 scanners.

120 VAC, 50/60 Hz Chassis with interface to ED510, interface to E500 Communication Interface and Modbus capability.

Union with quartz window, ½” for UV1A.

Factory wired cable assembly (59-598) for Simplicity quick disconnect version. 6 meters / 20 ft.

UV Scanner Explosion Proof 6 ft

Programmer, Selectable TFI timing, purge timing, post purge, prove open at start, 8 sec pilot stabilization, 10 sec main trial for ignition, with l…

Blank display module.

Remote Display Cable 3 ft

Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, post purge (30 sec max), prove open at start, 10 sec main trial for …

Shutter Control Module

Micro M Chassis 230V

REC Amplifier .8 sec. FFRT

Programmer, Relight function. Will ignore flame signal during “off” cycle.

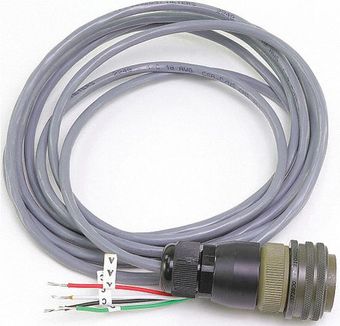

Scanner Cable 10 ft

E500/remote display (ED500) cable, 6 feet.

UV amp, 3 sec FFRT. Use with UV1, UV2, 45UV3.

Flame rect amp. 3 sec FFRT. Use with 69ND, 45CM.

Keypad selectable parameters, recycle operation, low fire start, early spark termination, 4 second FFRT

Firetron cell for 48PT1 only.

Same as MEP560 without pilot stabilization period. Will not lockout on air flow open during purge.

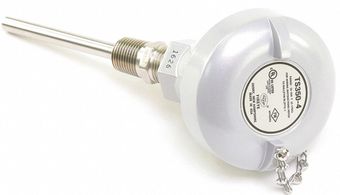

Temperature Sensor for Z-Module Control

Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, post purge, prove open at start with additional 6 second igniter on …

Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, prove open at start, and post purge (0 to 90 seconds).

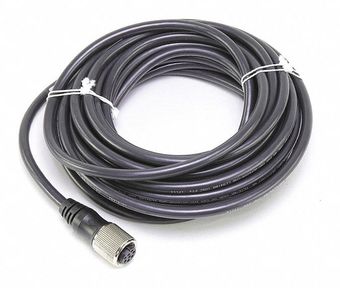

Factory wired cable assembly (59-546) for InSight II and Phoenix quick disconnect version. 12 meters / 40 ft.

UV non-self check scanner for frontal or side (90 degree) viewing. Complete with mounting fixture and 3 foot flex conduit (900 mm).

Swivel mount adaptor, ½” for 48PT, UV1A.

Plug-in Amplifier card for NXF4000. Ultraviolet (UV) scanner interface.

Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, post purge, prove open at start. Provides 0.30 second flame failure …

Remote reset cable, 3 feet.

4.3” (diagonal) color touch screen display for PPC4000 and NXF4000. Uses 59-561 cable

E500/remote display (ED500) cable, 18 inches.

Pressure transducer, 0-15 psi (0-1030 mb), 4-20 mA output linear with pressure. ¼” NPT mounting. Screw terminal connections and conduit adapter cover.

Programmer, Relight function. For MC230, MC120E only.

UV scanner, ½” NPT connector, 50 ft. cable rated for Tray Cable - Exposed Run (TC-ER).

Factory wired cable assembly (59-547) for InSight II / Series IV scanners. 6 meters / 20 ft.

2” blank filler plate.

Adapter kit to upgrade C9503 fiber optic scanners to 95IRS2-2 and use existing Detector fiber optic assembly.

Adapter kit to upgrade C9504 fiber optic scanners to 95UVS2-2 and use existing Detector fiber optic assembly.

1” blank filler plate.

Programmer, 5 sec TFI, lockout on flame failure. For MC230 only

Connector for use with DE4360 cable. Exposed cable at burner front.

Flame simulator (UV, IR, Flame rod) for 57AV4-5001

Fused silica lens for offset lens.

Connector for AB rack controller.
