Fireye All Products

Open Wiring Base Cabinet Mount M-Series

Micro M Programmer Relite

Magnifying lens cap (standard) for 48PT scanners.

Quartz lens for 60-1290 union (½”).

Flame rod, 12”, ½” mount (Auburn P/N FRS-2-12).

Multi-port cable adaptor for E110 accessories.

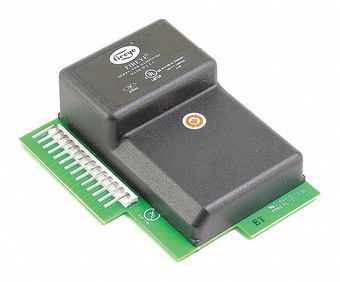

Programmer, Non-recycle on flame fail, 10 second PTFI.

Programmer, Immediate ignition and pilot after limits are closed, 10 sec PTFI (fixed), 10 sec MTFI, intermittent pilot, non-recycle on flame fail.

Expansion Cable 3 ft

Factory wired cable assembly (59-546) for InSight II and Phoenix quick disconnect version. 3 meters / 10 ft.

2 through 10 orifice set for scanners.

Flame rod, 24”, ½” mount (Auburn P/N FRS-2-24).

Remote display (ED510) mounting kit with 4’ cable.

Flame Rode/Photocell A 0.8 FFRT

Program Module 5 sec. PTFI

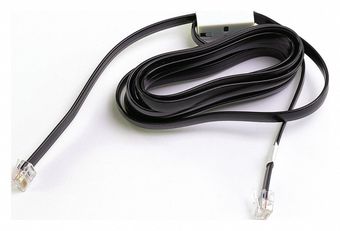

Cable 8 ft

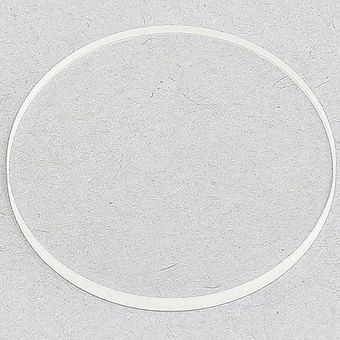

Quartz Window

Non-recycle operation, 0 sec purge, 15 second PTFI, 10 second post purge, no FM Approval.

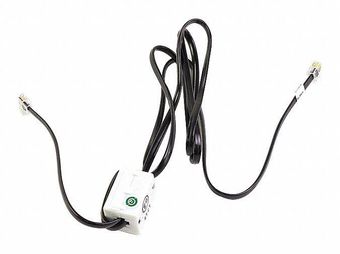

RJ12 connector cable - 4 feet.

RJ12 connector cable - 2 feet.

Programmer Module 30 sec. Purge 5 STFI

Relight operation, 12 sec purge, 10 sec PTFI, reset lockout on line power interruption.

Programmer, Fixed 10 sec SISP*, 10 sec MTFI, re-try once on pilot failure, fixed 30 sec post purge. *Spark Igniter Sensing Period

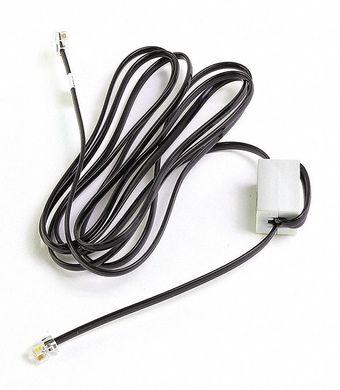

RJ12 connector cable - 8 feet.

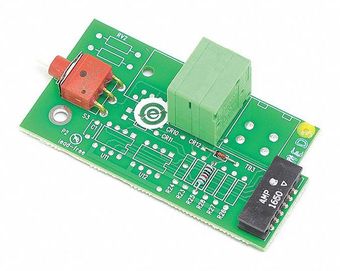

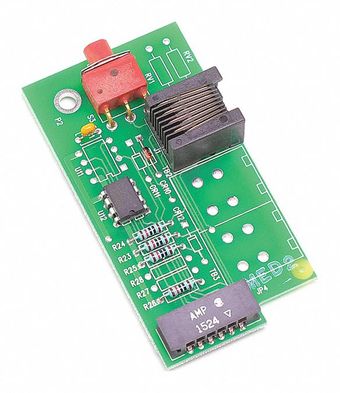

Daughter board with local reset switch, remote reset.

Daughter board with local reset switch, display output.

Blank display module.

Multi-port cable adaptor for E100 accessories.

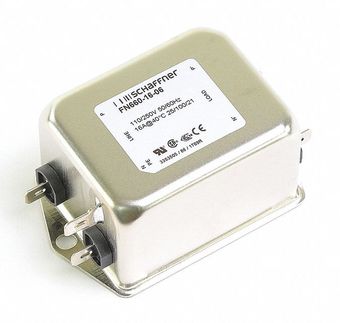

Schaffner Noise Filter

Remote display (ED510) mounting kit with 2’ cable.

Programmer 10 sec. TIF

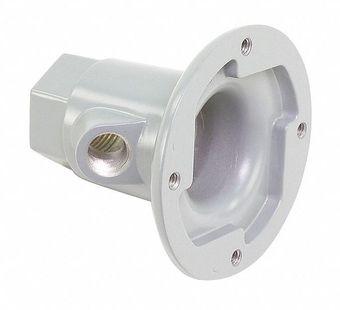

Mounting flange kit for -CEX version of InSight I and Series IV/Phoenix/Simplicity scanners, 1” NPT

Daughter board with local reset switch, display output, remote reset, and communications.

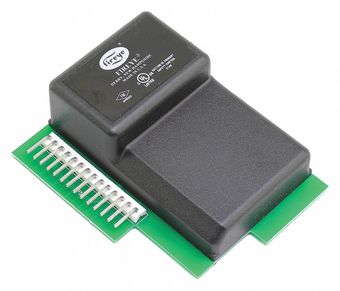

UV self check amp, 0.8 sec FFRT. Use with 45UV5-1008, -1009.

Infrared amp, 0.8 sec FFRT. Use with 48PT2 scanner.

Programmer, Relight operation, 10 sec PTFI, 15 sec post purge.

Micro M Programmer

Micro M Programmer Relight

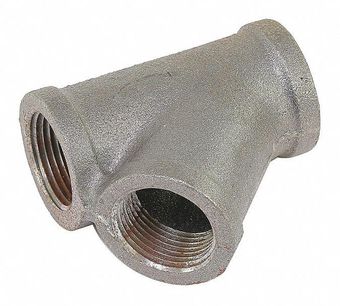

1 inch WYE (NPT).

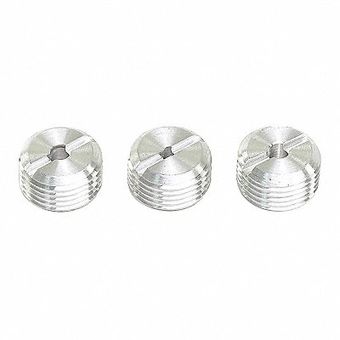

Set of 3 orifice plugs for 48PT1, 48PT2.

Flame rod, 18”, ½” mount (Auburn P/N FRS-2-18).

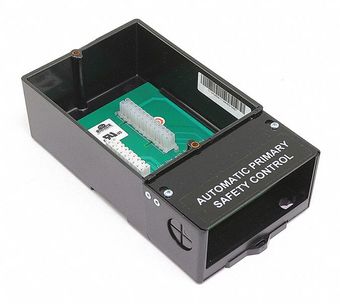

Open base with terminal block. 4”W x 7”H. UL Recognized.

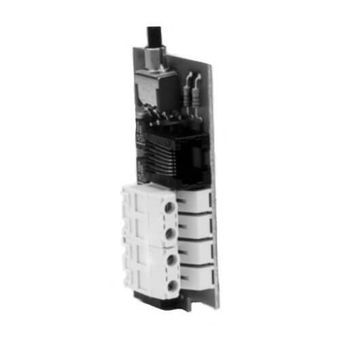

Daughter board with local reset switch, display output and remote reset.

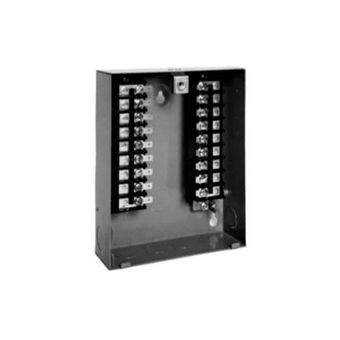

YZ300 wiring base, terminal blocks, open end.

YZ300 wiring base, terminal blocks, closed with knockouts.

Closed base with terminal block and knockouts, 4”W x 7”H. UL Recognized.

Cadmium sulfide amp, 3 sec FFRT. Use with C554A scanner.

Cadmium sulfide amp, 0.8 sec FFRT. Use with C554A scanner.

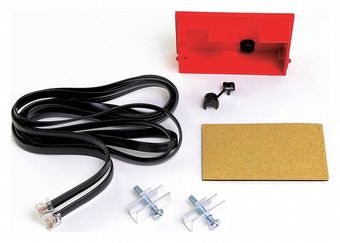

Kit, remote mounting, BurnerLogix display, 8 ft. cable, provides NEMA 4 protection

Magnifying Lens Assembly (includes 46-186 and insulated coupling).

1” NPT mounting flange for Phoenix Series II and InSight Scanner. Heat insulating material incorporated into flange.

UV scanner, ½” NPT connector, front view, 6ft cable, shielded leads

Programmer, 5 sec purge, 10 sec PTFI (fixed), 5 sec pilot proving, 10 sec MTFI, interrupted pilot, interrupted ignition, non-recycle on flame fail.

Factory wired cable assembly (59-546) for InSight II and Phoenix quick disconnect version. 6 meters / 20 ft.

Oxygen probe filter assembly.

Cable, 6 ft. (1830 mm) for remote display

Red dust cover for E100/E110/E120/E200/E201/E210/E211.
