Turck NI12U-G18-ADZ30X2-B1331
SKU: CS986283MPN: NI12U-G18-ADZ30X2-B1331Alternate Part #s: 4281412TUR-NI12U-G18-ADZ30X2-B1331UPC/EAN: 4047101136579
4281412 - UPROX, BARREL, AC, CON. ⅞IN.
$259.46
Unit5 in stock
Product Details
Inductive Sensor

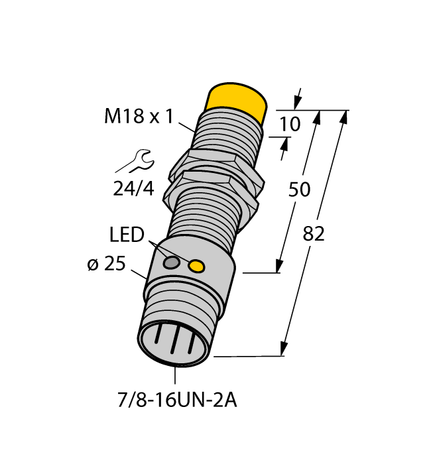

- Threaded barrel, M18 x 1
- Chrome-plated brass
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- AC 2-wire, 20…250 VAC
- DC 2-wire, 10…300 VDC
- NO contact
- ⅞” male connector
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M18 x 1 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, ⅞″ |
| Housing Material | Metal, CuZn, Chrome-plated |
| Mounting | Non-flush |
| Operating Voltage | 20…250 VAC / 10…300 VDC |
| Output Function | NO contact, 2-wire |
| Protection Class | IP68 |
| Rated Switching Distance | 12 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.010 kHz |
Specifications
| SKU | CS986283 |
|---|---|
| MPN | NI12U-G18-ADZ30X2-B1331 |
| Alternate Part #s | 4281412, TUR-NI12U-G18-ADZ30X2-B1331 |
| UPC/EAN | 4047101136579 |
