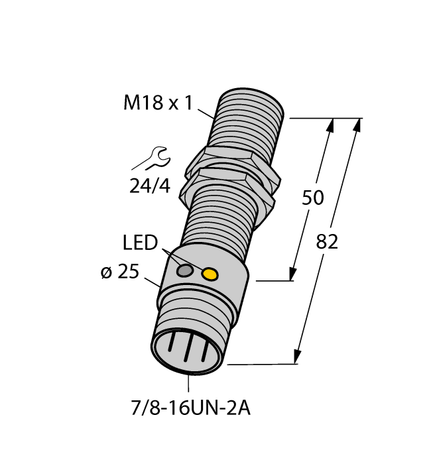

Turck BI5-G18-ADZ30X2-B1331
SKU: CS262829MPN: BI5-G18-ADZ30X2-B1331Alternate Part #: 42080UPC/EAN: 4047101018417
42080 - FERRITE, BARREL, AC, CON. ⅞IN.
$192.06
UnitAvailable on backorder
Product Details
Inductive Sensor
- Threaded barrel, M18 x 1
- Chrome-plated brass
- AC 2-wire, 20…250 VAC
- DC 2-wire, 10…300 VDC
- NO contact
- ⅞” male connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | M18 x 1 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, ⅞″ |
| Housing Material | Metal, CuZn, Chrome-plated |
| Mounting | Flush |
| Operating Voltage | 20…250 VAC / 10…300 VDC |
| Output Function | NO contact, 2-wire |
| Protection Class | IP67 |
| Rated Switching Distance | 5 mm |
| Switching Frequency | 0.020 kHz |
Specifications
| SKU | CS262829 |
|---|---|
| MPN | BI5-G18-ADZ30X2-B1331 |
| Alternate Part # | 42080 |
| UPC/EAN | 4047101018417 |
