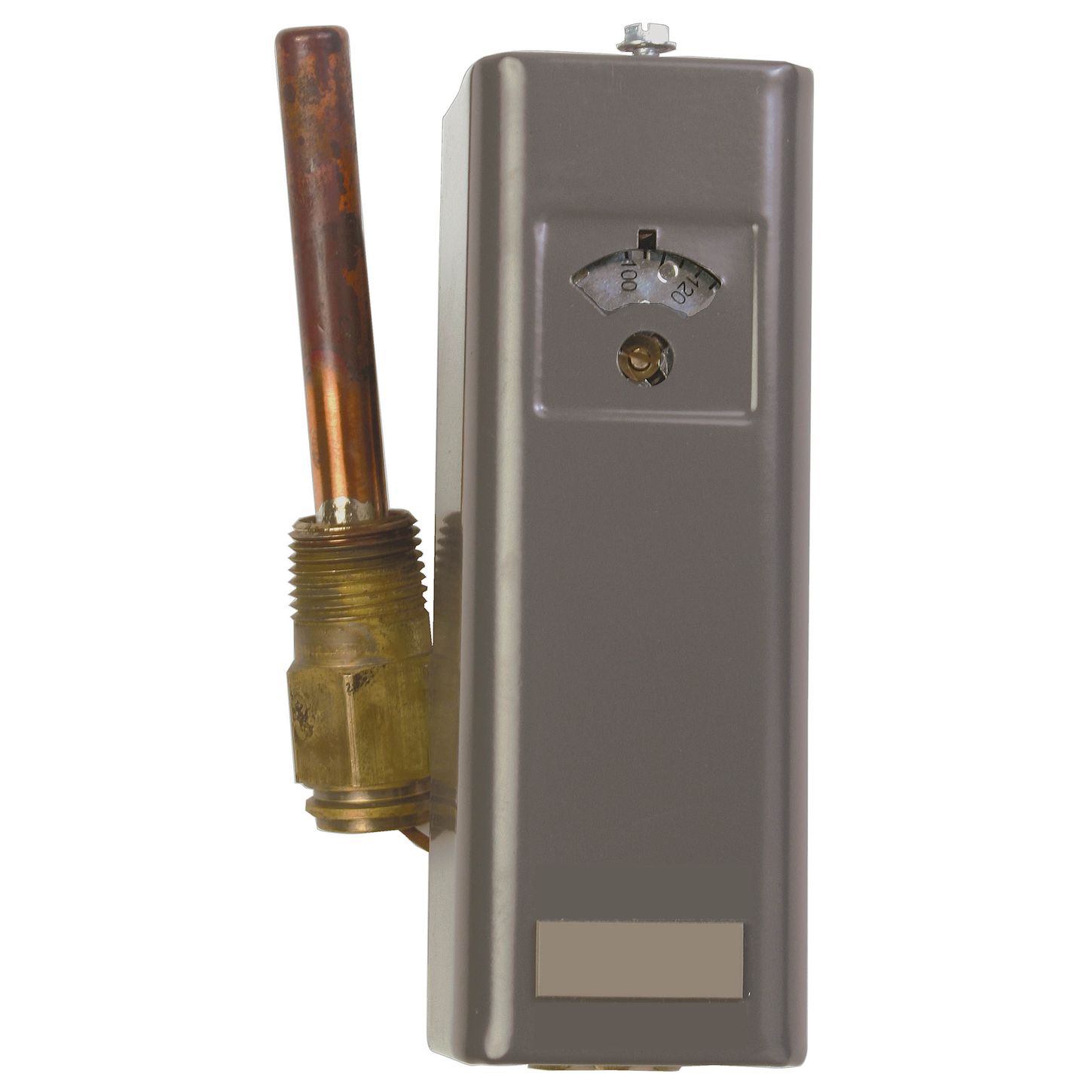

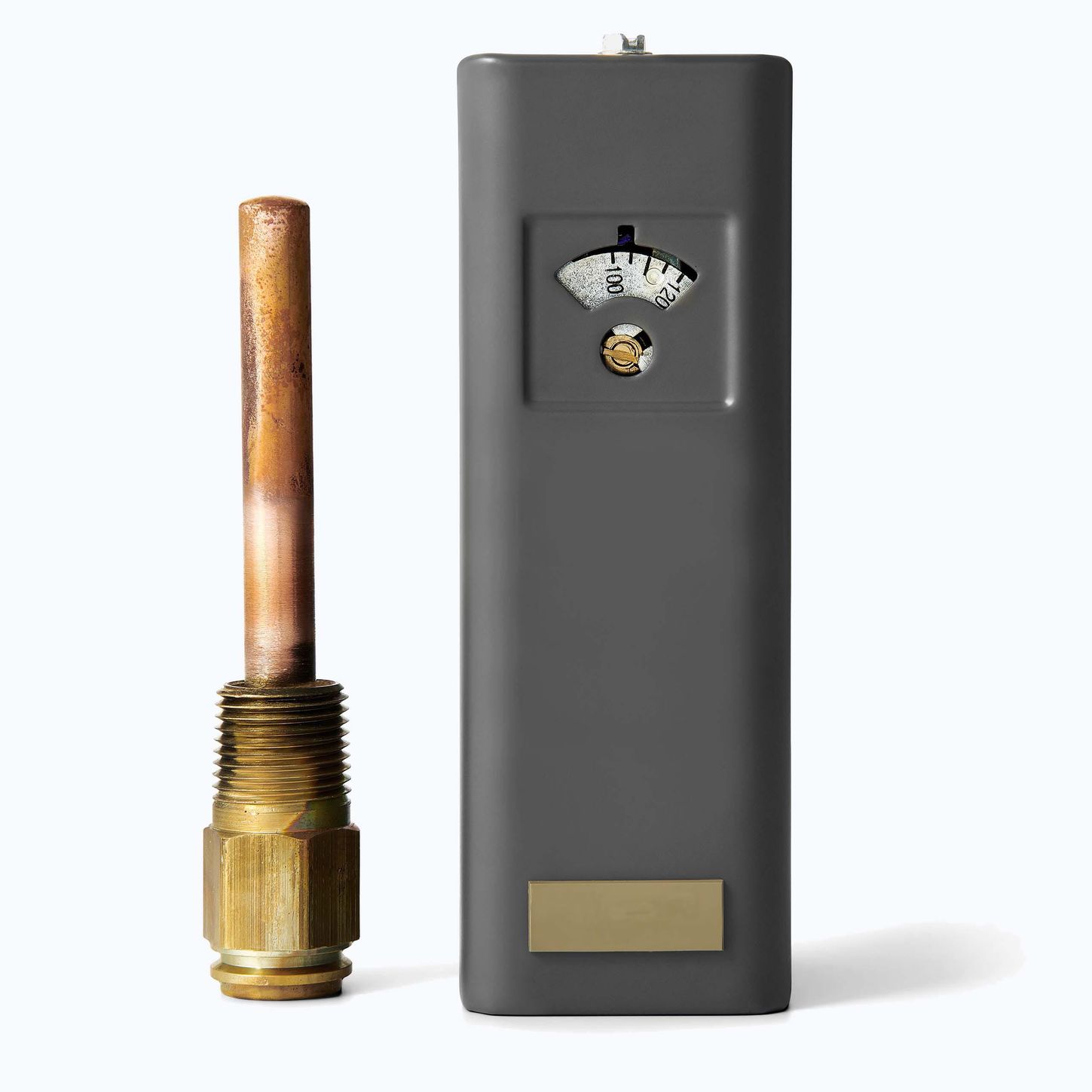

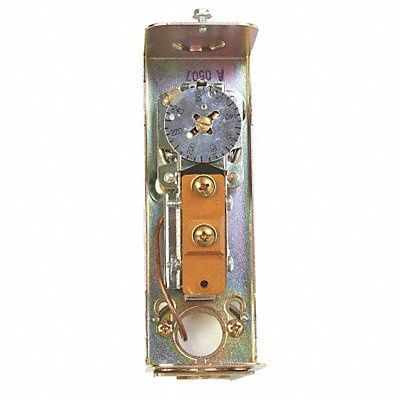

Resideo L4006A1967

Aquastat, breaks on rise, 100-240F range, 240F factory stop, 5-30F adjustable differential

Aquastat Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. Honeywell’s L4006 are used in applications that utilize the existing wells.

Includes: 1-½” (38 mm) well, stop factory-set at 240F (116C).

Features:

• Totally enclosed Micro Switchâ„¢ snap-acting switches operate on temperature rise to setpoint.
• Visible control point scale and external adjustment screw permit easy setting.
• Horizontal or vertical insertion of the sensing element.
• Direct or well immersion of the sensing element.
• Models available for strap-on mounting.
• Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
• Select models have wells.
• UL limit rated device.

Specifications:

• Insulation Depth (in.): 1-½”
• Spud Size (in.): ½”
• Approvals, Underwriters Laboratories Inc: UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
• Approvals, Canadian Standards Association: Certified: File No. LR95329-1
• Approvals, American Gas Association IAS: AGA Certified
