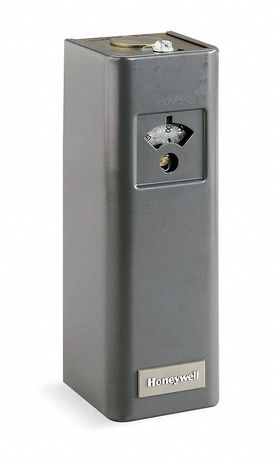

Resideo L6006A1145

High or low limit horizontal mount controller with SPDT, operating range 100-240F, 3 inch capillary.

Aquastat Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required.

Features:

• Totally enclosed Micro Switch snap-acting switches operate on temperature rise to set point.
• Visible control point scale and external adjustment screw permit easy setting.
• Horizontal or vertical insertion of the sensing element.
• Direct, well immersion, or surface mounting of the sensing element available.
• Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
• Direct or well immersion Tradeline models include heat-conductive compound.
• Select models have wells.
• For high or low limit temperature control of boiler water or liquid in tanks
• Tube of heat-conductive compound (see HC Tube column) included with some models
