Siemens 599-03073
SKU: CS940166MPN: 599-03073UPC/EAN: 804766019074
Flowrite ½” 2W Valve, NC, 1.6Cv, Linear, SS Trim, Hi Temp Pack, F×F, ANSI 250
$337.89
UnitAvailable on backorder
Product Details
Flowrite, ½” 2-Way Valve, 1.6 Cv, Linear, NC, F×F, SS Trim, High Temperature Packing, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, No tools required for installation.
Attributes
| Connecting Thread | NPT, direct-coupled universal bonnet |
| End Connection | FxF |
| Flow Characteristic | Linear |
| Flow Coefficient Cv | 1.6000000238419 |
| High Temperature | YES |
| Leakage Rate | Class IV (0.01% of Cv) |
| Material Inside Set | Body Trim: Stainless Steel;Stem: Stainless Steel ASTM A582 Type 303;Normal Duty Packing: EPDM O-ring;Seat: Single seat metal-to-metal |
| Material Valve Body | UNS CA 844 bronze |
| Medium | Saturated steam;Water;Water with anti-freeze |
| Medium Temperature | 20…337 ºF |
| Medium Temperature F Max | 337 ºF |
| Medium Temperature F Min | 20 ºF |
| Mounting Position | vertical, horizontal, upright |
| Normally Open Normally Closed | Normally Closed |
| Permissible Operating Pressure | 2758 kPa; 50 psi |
| Port Configuration | 2-Way Normally closed |
| Rangeability | |
| Stroke | ¾ in., 20 mm |
| Trim Material | Stainless Steel |
| Valve Body Style | Stroke-Globe |
| Valve Size | 0.5 in |
| Valve Type | Two-way |
Specifications
| SKU | CS940166 |
|---|---|
| MPN | 599-03073 |
| UPC/EAN | 804766019074 |
You may also like
Siemens 599-03055
$337.89UnitSiemens 599-03074
$337.89Unit
Siemens 599-03075
$335.41Unit

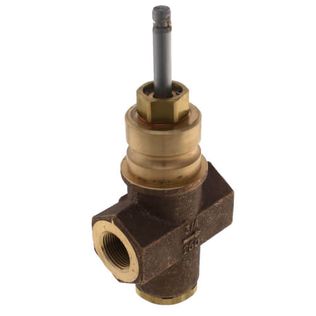

Siemens 599-03076
$358.92Unit

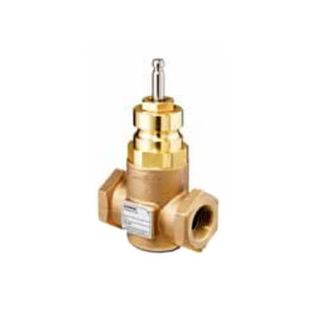

Siemens 599-03057
$337.89UnitSiemens 599-03056
$335.41Unit

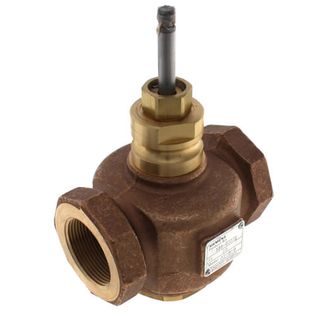

Siemens 599-03079
$648.05Unit
Siemens 599-03072
$335.41UnitSiemens 599-03058
$319.46Unit

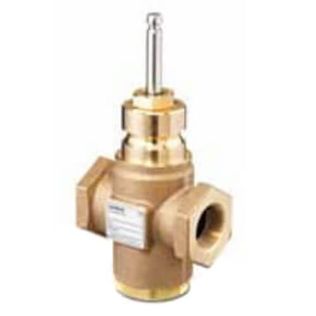

Siemens 599-03078
$473.60Unit
Siemens 599-03061
$652.87Unit

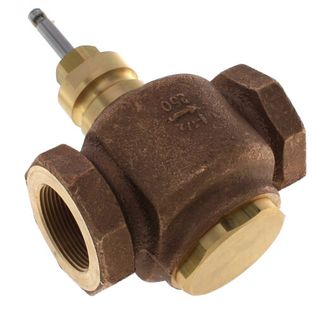

Siemens 599-03080
