Siemens 599-03076

Name: Siemens 599-03076
Brand: Siemens Building Technologies
SKU: CS85713
Price: 358.92 USD
Availability: InStock

SKU: CS85713MPN: 599-03076UPC/EAN: 4034106335113

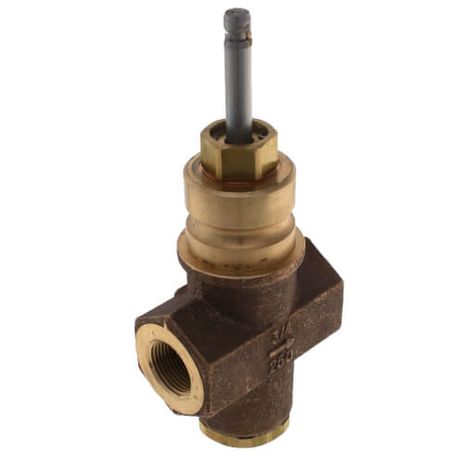

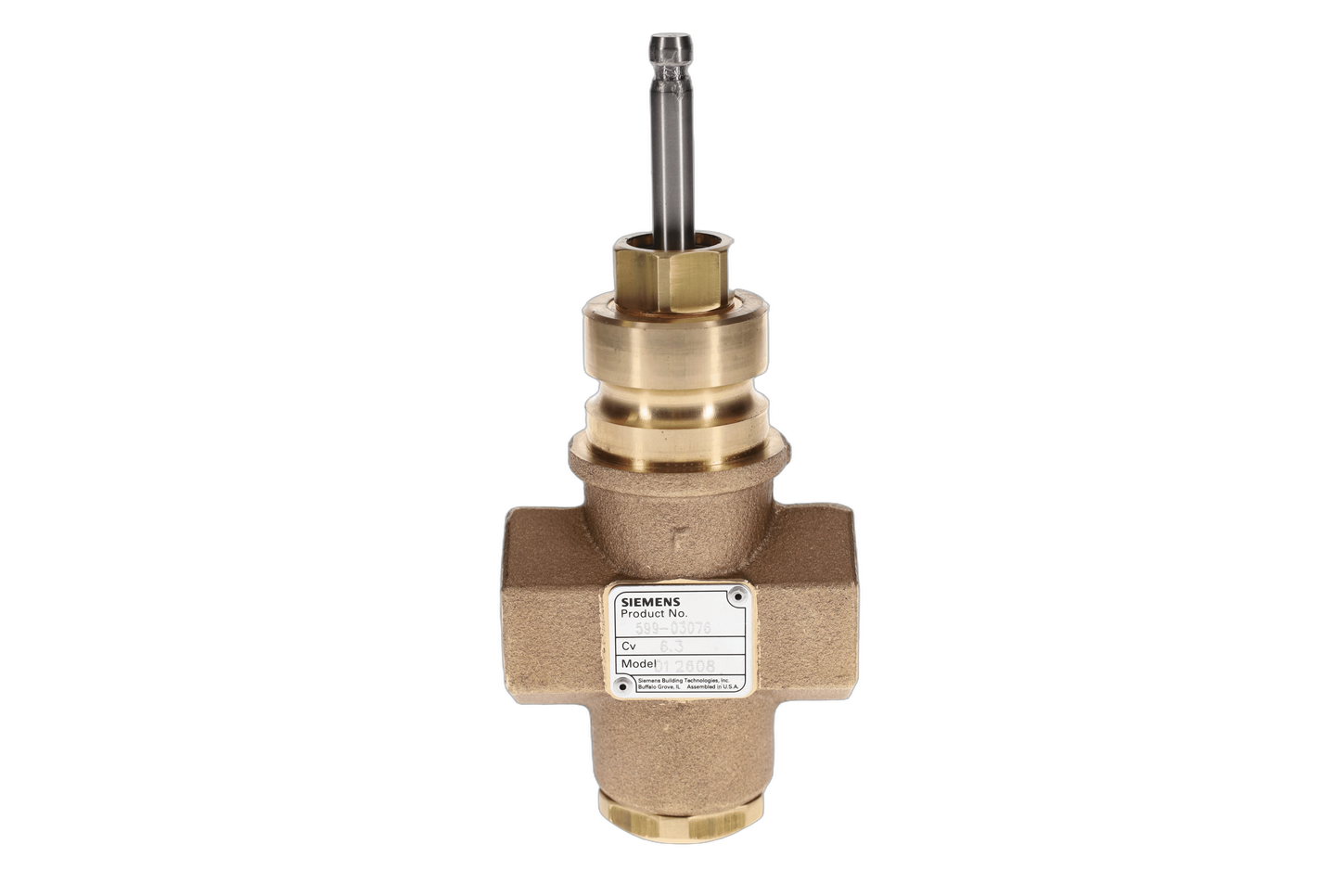

Flowrite ¾” 2W Valve, NC, 6.3Cv, Linear, SS Trim, Hi Temp Pack, F×F, ANSI 250

$358.92

Unit

9 in stock

Quantity

remove

add

Product Details

Flowrite, ¾” 2-Way Valve, 6.3 Cv, Linear, NC, F×F, SS Trim, High Temperature Packing, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, No tools required for installation.

Attributes

Connecting Thread	NPT, direct-coupled universal bonnet
End Connection	FxF
Flow Characteristic	Linear
Flow Coefficient Cv	6.3000001907349
High Temperature	YES
Leakage Rate	Class IV (0.01% of Cv)
Material Inside Set	Body Trim: Stainless Steel;Stem: Stainless Steel ASTM A582 Type 303;Normal Duty Packing: EPDM O-ring;Seat: Single seat metal-to-metal
Material Valve Body	UNS CA 844 bronze
Medium	Saturated steam;Water;Water with anti-freeze
Medium Temperature	20…337 ºF
Medium Temperature F Max	337 ºF
Medium Temperature F Min	20 ºF
Mounting Position	vertical, horizontal, upright
Normally Open Normally Closed	Normally Closed
Permissible Operating Pressure	2758 kPa; 50 psi
Port Configuration	2-Way Normally closed
Rangeability	100:1
Stroke	¾ in., 20 mm
Trim Material	Stainless Steel
Valve Body Style	Stroke-Globe
Valve Size	0.75 in
Valve Type	Two-way
