Dwyer 475-3-FM

SKU: CS919535MPN: 475-3-FMAlternate Part #: 100530-05

475-3-FM 199.9 IN/49.7 KPA

Dwyer 475-2-FM, 475-3-FM
$325.28
Unit
1 Unit Available at Factory - Ships Same/Next Business Day
remove
add

Product Details

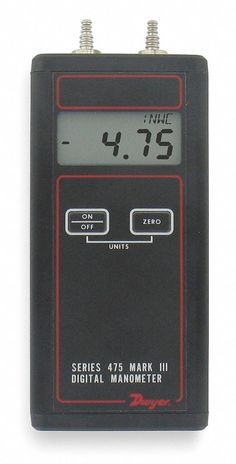

Handheld digital manometer, range 0-200.0” w.c. (49.82 kPa), max. pressure 30 psig.

Attributes

Accuracy ±0.5% FS, 60 to 78°F (15.6 to 25.6°C); ±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
Commodity Code 0202
Compensated Temperature Limits 32 to 104°F (0 to 40°C).
Compliance CE, FM approved to Class I, Div 2, Groups A, B, C, D, T4 Ta = 70°C.
Display 0.42” (10.6 mm) 4-digit LCD.
Power Requirement 9 V alkaline battery, installed non-functional, user replaceable.
Pressure Hysteresis ±0.1% of FS.
Pressure Limit See catalog page.
Process Connection Two barbed connections for use with ⅛” (3.18 mm) or 3/16” (4.76 mm) I.D. tubing. Two compression fittings for use with ⅛” (3.18 mm) I.D. x ¼” (6.35 mm) O.D. tubing for 475-7 & 475-8 only.
Resolution See Ordering page.
Service Air and compatible combustible gases.
Storage Temperature Limits -4 to 176°F (-20 to 80°C).
Wetted Material Consult factory.

Specifications

SKUCS919535
MPN475-3-FM
Alternate Part #100530-05
