Dwyer 475-00-FM
SKU: CS832501MPN: 475-00-FMAlternate Part #: 100530-01
475-00-FM 4 IN/.995 KPA
$452.30
UnitAvailable on backorder
Product Details

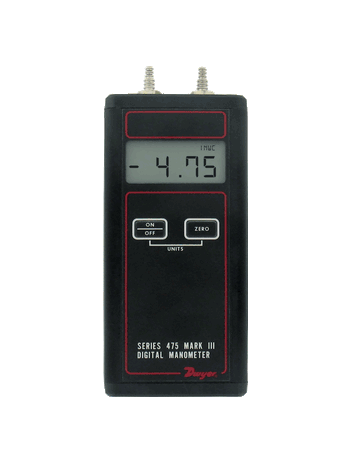

Handheld digital manometer, range 0-4.000” w.c. (0.996 kPa), max. pressure 5 psig.
Attributes
| Accuracy | ±0.5% FS, 60 to 78°F (15.6 to 25.6°C); ±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C). |
| Commodity Code | 0202 |
| Compensated Temperature Limits | 32 to 104°F (0 to 40°C). |
| Compliance | CE, FM approved to Class I, Div 2, Groups A, B, C, D, T4 Ta = 70°C. |
| Display | 0.42” (10.6 mm) 4-digit LCD. |
| Power Requirement | 9 V alkaline battery, installed non-functional, user replaceable. |
| Pressure Hysteresis | ±0.1% of FS. |
| Pressure Limit | See catalog page. |
| Process Connection | Two barbed connections for use with ⅛” (3.18 mm) or 3/16” (4.76 mm) I.D. tubing. Two compression fittings for use with ⅛” (3.18 mm) I.D. x ¼” (6.35 mm) O.D. tubing for 475-7 & 475-8 only. |
| Resolution | See Ordering page. |
| Service | Air and compatible combustible gases. |
| Storage Temperature Limits | -4 to 176°F (-20 to 80°C). |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS832501 |
|---|---|
| MPN | 475-00-FM |
| Alternate Part # | 100530-01 |
