Dwyer 475-5-FM

Name: Dwyer 475-5-FM
Brand: Dwyer
SKU: CS4124540
Price: 325.28 USD
Availability: OutOfStock

SKU: CS4124540MPN: 475-5-FMAlternate Part #: 100530-07

475-5-FM 19.99 PSI/1.378 BAR

$325.28

Unit

Available on backorder

Quantity

remove

add

Product Details

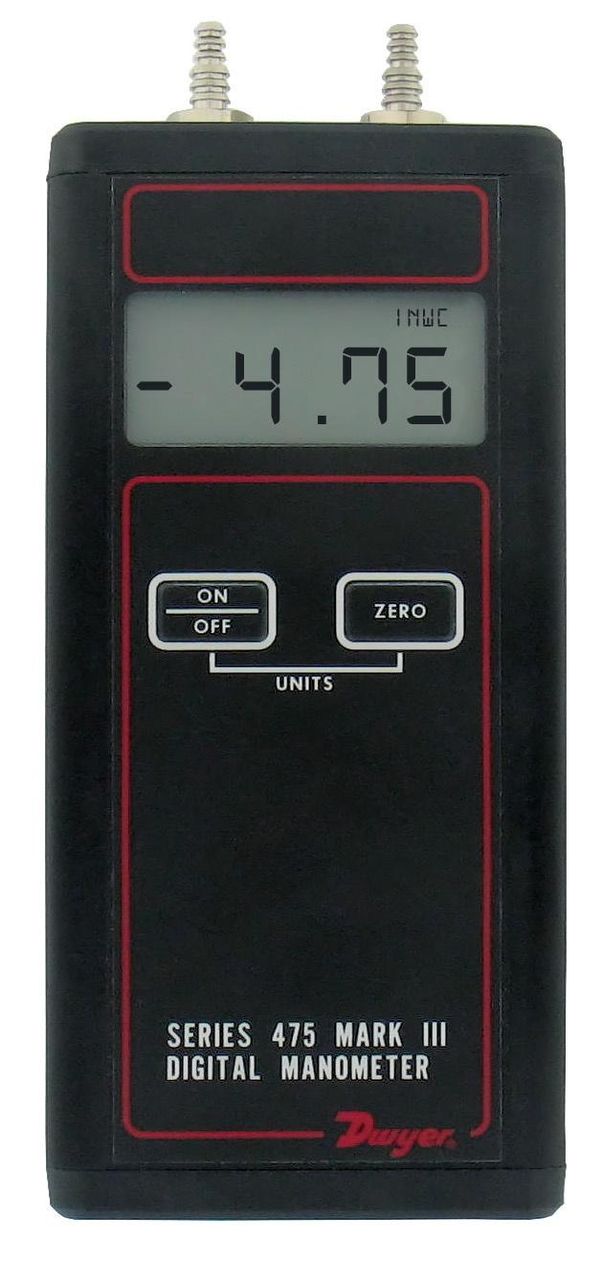

Handheld digital manometer, range 0-20.00 psi (1.379 bar), max. pressure 60 psig.

Accuracy	±0.5% FS, 60 to 78°F (15.6 to 25.6°C); ±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
Commodity Code	0202
Compensated Temperature Limits	32 to 104°F (0 to 40°C).
Compliance	CE, FM approved to Class I, Div 2, Groups A, B, C, D, T4 Ta = 70°C.
Display	0.42” (10.6 mm) 4-digit LCD.
Power Requirement	9 V alkaline battery, installed non-functional, user replaceable.
Pressure Hysteresis	±0.1% of FS.
Pressure Limit	See catalog page.
Process Connection	Two barbed connections for use with ⅛” (3.18 mm) or 3/16” (4.76 mm) I.D. tubing. Two compression fittings for use with ⅛” (3.18 mm) I.D. x ¼” (6.35 mm) O.D. tubing for 475-7 & 475-8 only.
Resolution	See Ordering page.
Service	Air and compatible combustible gases.
Storage Temperature Limits	-4 to 176°F (-20 to 80°C).
Wetted Material	Consult factory.
