Siemens 599-03080

Name: Siemens 599-03080
Brand: Siemens Building Technologies
SKU: CS114852
Price: 820.56 USD
Availability: InStock

SKU: CS114852MPN: 599-03080UPC/EAN: 804766016790

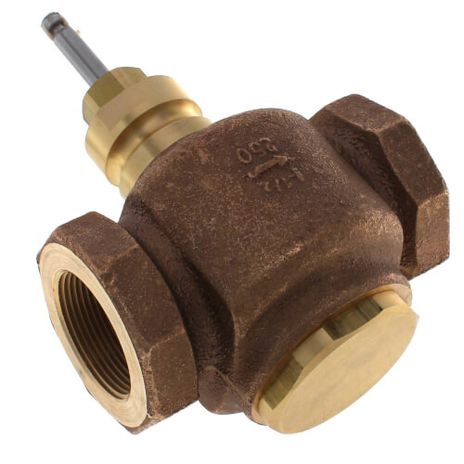

Flowrite 2” 2W Valve, NC, 40Cv, Linear, SS Trim, High Temp Pack, F×F, ANSI 250

$820.56

Unit

6 in stock

Quantity

remove

add

Product Details

Flowrite, 2” 2-Way Valve, 40 Cv, Linear, NC, F×F, SS Trim, High Temperature Packing, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, No tools required for installation.

Attributes

Connecting Thread	NPT, direct-coupled universal bonnet
End Connection	FxF
Flow Characteristic	Linear
Flow Coefficient Cv	40.0000
High Temperature	YES
Leakage Rate	Class IV (0.01% of Cv)
Material Inside Set	Body Trim: Stainless Steel;Stem: Stainless Steel ASTM A582 Type 303;High Temp Packing: Teflon V-ring;Seat: Single seat metal-to-metal
Material Valve Body	UNS CA 844 bronze
Medium	Saturated steam;Water;Water with anti-freeze
Medium Temperature	20…337 ºF
Medium Temperature F Max	337 ºF
Medium Temperature F Min	20 ºF
Mounting Position	vertical, horizontal, upright
Normally Open Normally Closed	Normally Closed
Permissible Operating Pressure	2758 kPa; 50 psi
Port Configuration	2-Way Normally closed
Rangeability	100:1
Stroke	¾ in., 20 mm
Trim Material	Stainless Steel
Valve Body Style	Stroke-Globe
Valve Size	2 in
Valve Type	Two-way
