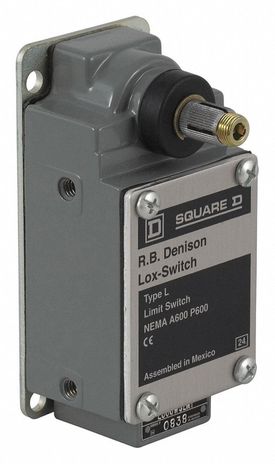

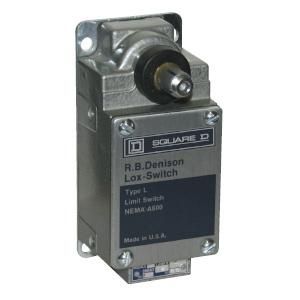

Square D L300WS2M1

Name: Square D L300WS2M1
Brand: Square D
SKU: CS82727
Availability: OutOfStock

SKU: CS82727MPN: L300WS2M1Alternate Part #: SQD-L300WS2M1UPC/EAN: 785901170006

Limit switch, L100/300, L300 foundry 2 contacts, spring return, CW, ½” NPT

Product Details

Nema Limit Switches L300 foundry limit switch - 2 contacts - spring return - CW - ½in NPT

Ithe Conventional Enclosed Thermal Current	20 A
Ambient Air Temperature For Operation	-10-185 °F
Ambient Air Temperature For Operation 1	-10-185 °F
Ambient Air Temperature For Storage	-10-185 °F
Base Plate Style	style 2
Body Material	cast aluminium
Body Type	fixed
Ccw Operation Contacts	1 NC + 1 NO
Contact Form	Form Zb
Contact Operation	snap action
Contact Sequence Number	1.0000
Contacts Style	A
Contacts Usage	-
Cw Operation Contacts	1 NC + 1 NO
Device Short Name	L300# #L100
Fixing Mode	by the body
Function Available	-
Head Type	rotary head
Maximum Displacement Angle	80 °
Minimum Torque For Tripping	190 ozf.in
Number Of Poles	2.0
Positive Opening	without
Product Or Component Type	limit switch
Product Specific Application	foundry switch
Protective Treatment	corrosion resistant gray paint
Range Of Product	L100/300
Repeat Accuracy	± 0.03 %
Sale Per Indivisible Quantity	1.0000
Series Name	severe duty foundry
Switch Actuation	CW# #from left
Switch Function	DPDT-DB
Terminals Description Iso N 1	(1-2) left side contact# #(3-4) right side contact
Type Of Approach	lateral approach
