Square D 9050JCK27V20

Name: Square D 9050JCK27V20
Brand: Square D
SKU: CS801065
Price: 133.78 USD
Availability: OutOfStock

SKU: CS801065MPN: 9050JCK27V20UPC/EAN: 785901032670

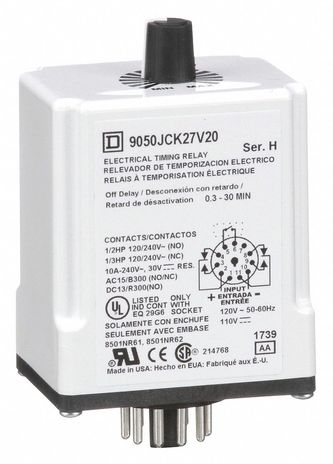

Timer, Harmony 9050 JCK, off delay, adjustable time, 0.3 to 30 minutes, 10A, 240V AC, 120V AC/110V DC

$133.78

Unit

Available on backorder

Quantity

remove

add

Product Details

Single Function Time Delay Relay Function - Timing Relay Off Delay Coil Volts 120V AC AC Contact Rating - Relay 10A @ 120/240V DC Contact Rating - Relay 10A @ 30V Base Type - Plug In Relay Octal Number of Pins - Relay 11 Mounting - Relay Plug In Contact Form - Relay DPDT Power Consumption - Relay 2 VA Adjustment Method - Timer Rotary Knob Min Time Setting - Timer 0.3 sec Max Time Setting - Timer 30 min Contact Material Silver Alloy

Attributes

In Rated Current	0.417
In Rated Current 1	0.417
Ambient Air Temperature For Operation	-18-150 °F
Ambient Air Temperature For Operation 1	-18-150 °F
Contacts Material	silver nickel
Contacts Type And Composition	2 NO + 2 NC
Hold In Power Consumption In Va	2-2 VA
Mounting Support	socket
Pin Number	11.0
Pin Number 1	11.0
Product Certifications	CE# #UL recognized# #UL listed
Product Compatibility	8501NR61# #8501NR62
Product Or Component Type	timer
Range Of Product	9050JCK
Shape Of Pin	tubular
Switch Function	DPDT
Time Delay Range	0.3…30 min
Time Delay Type	off-delay
