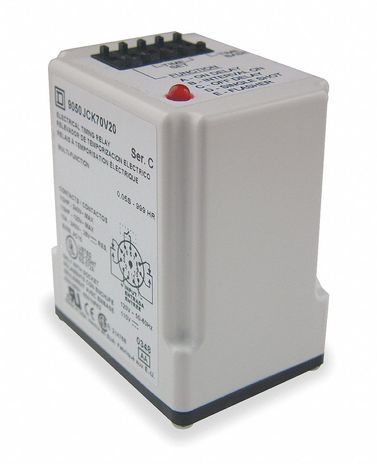

Square D 9050JCK70V14

Name: Square D 9050JCK70V14
Brand: Square D
SKU: CS1686566
Price: 100.33 USD
Availability: OutOfStock

SKU: CS1686566MPN: 9050JCK70V14UPC/EAN: 785901053897

Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC

$100.33

Unit

Available on backorder

Quantity

remove

add

Product Details

H7788 Multi-Function Time Delay Relay Function - Timing Relay Interval Off Delay On Delay One shot Repeat Cycle Coil Volts 24V AC/DC AC Contact Rating - Relay 10A @ 120/240V DC Contact Rating - Relay 10A @ 30V Base Type - Plug In Relay Octal Number of Pins - Relay 11 Mounting - Relay Plug In Contact Form - Relay DPDT Power Consumption - Relay 2 VA Adjustment Method - Timer Dip Switch Min Time Setting - Timer 0.05 sec Max Time Setting - Timer 16 day 39 min Status Indicator None

Attributes

In Rated Current	0.417
In Rated Current 1	0.417
Ambient Air Temperature For Operation	-18-150 °F
Ambient Air Temperature For Operation 1	-18-150 °F
Contacts Material	silver nickel
Contacts Type And Composition	2 NO + 2 NC
Hold In Power Consumption In Va	3-3 VA
Mounting Support	socket
Pin Number	11.0
Pin Number 1	11.0
Product Certifications	UL recognized# #CE# #UL listed
Product Compatibility	8501NR62# #8501NR61
Product Or Component Type	timer
Range Of Product	9050JCK
Shape Of Pin	tubular
Switch Function	DPDT
Time Delay Range	0.1…99.9 h# #0.05…9.99 s# #0.1…99.9 min# #1…999 h# #1…999 s# #1…999 min
Time Delay Type	watchdog# #on-delay and off-delay# #one shot falling edge# #one shot# #trigger on-delay# #off-delay# #on-delay# #interval# #repeat cycle
