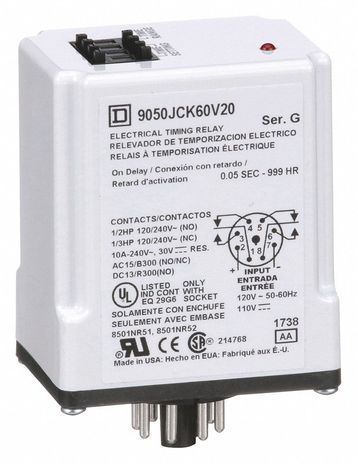

Square D 9050JCK60V20

Name: Square D 9050JCK60V20
Brand: Square D
SKU: CS326514
Price: 157.80 USD
Availability: OutOfStock

SKU: CS326514MPN: 9050JCK60V20UPC/EAN: 785901053866

Timing Relay, Type JCK, plug In, on delay, programmable, 0.5 second to 999 hours, 10A, 240VAC, 120VAC/110VDC

$157.80

Unit

Available on backorder

Quantity

remove

add

Product Details

H7842 Single Function Time Delay Relay Function - Timing Relay On Delay Coil Volts 120V AC AC Contact Rating - Relay 10A @ 120/240V DC Contact Rating - Relay 10A @ 30V Base Type - Plug In Relay Octal Number of Pins - Relay 8 Mounting - Relay Plug In Contact Form - Relay DPDT Power Consumption - Relay 2 VA Adjustment Method - Timer Dip Switch Min Time Setting - Timer 0.05 sec Max Time Setting - Timer 16 day 39 min Contact Material Silver Alloy

Attributes

In Rated Current	0.417
In Rated Current 1	0.417
Ambient Air Temperature For Operation	-18-150 °F
Ambient Air Temperature For Operation 1	-18-150 °F
Contacts Material	silver nickel
Contacts Type And Composition	2 NO + 2 NC
Hold In Power Consumption In Va	3-3 VA
Mounting Support	socket
Pin Number	8.0
Pin Number 1	8.0
Product Certifications	CE# #UL recognized# #UL listed
Product Compatibility	8501NR51# #8501NR52
Product Or Component Type	timer
Range Of Product	9050JCK
Shape Of Pin	tubular
Switch Function	DPDT
Time Delay Range	0.1…99.9 s# #1…999 s# #0.1…99.9 min# #0.05…9.99 s# #0.1…99.9 h# #1…999 h
Time Delay Type	on-delay
