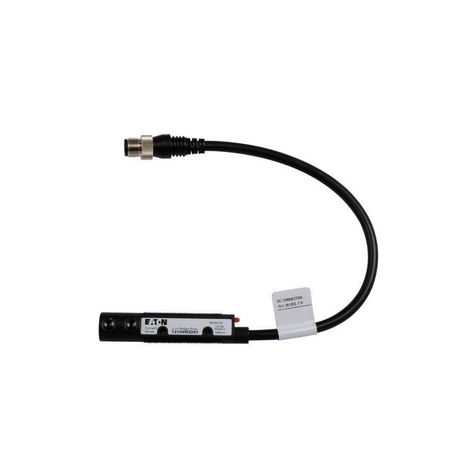

Eaton 13104RQD07

Name: Eaton 13104RQD07
Brand: Eaton
SKU: CS798525
Price: 490.54 USD
Availability: InStock

SKU: CS798525MPN: 13104RQD07UPC/EAN: 782113945521

Eaton Comet 18mm tubular photoelectric sensor

Eaton 13104R6513, 13104RQD03, 13104RQD07, 13104RS5003, 13104RS5013

$490.54

Unit

3 in stock

Quantity

remove

add

Product Details

Eaton Comet 18mm tubular photoelectric sensor, Perfect Prox Photoelectric Sensor, Back Ground Suppression, 2 in range, Right Angle, Output ON, M12, 100 mA PNP, 250 mA NPN at 10-30 Vdc, 4 pin, NPN and PNP open collector, 10-30 Vdc

Attributes

Connection	M12
Contact Configuration	NPN and PNP open collector
Contact Rating	100 mA PNP, 250 mA NPN at 10-30 Vdc
Enclosure Material	Polyurethane foam (RIM)
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output ON
Maximum Dc Current	100 mA PNP, 250 mA NPN
Number Of Pins	4.0000
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset short circuit
Sensor Type	Back ground suppression
