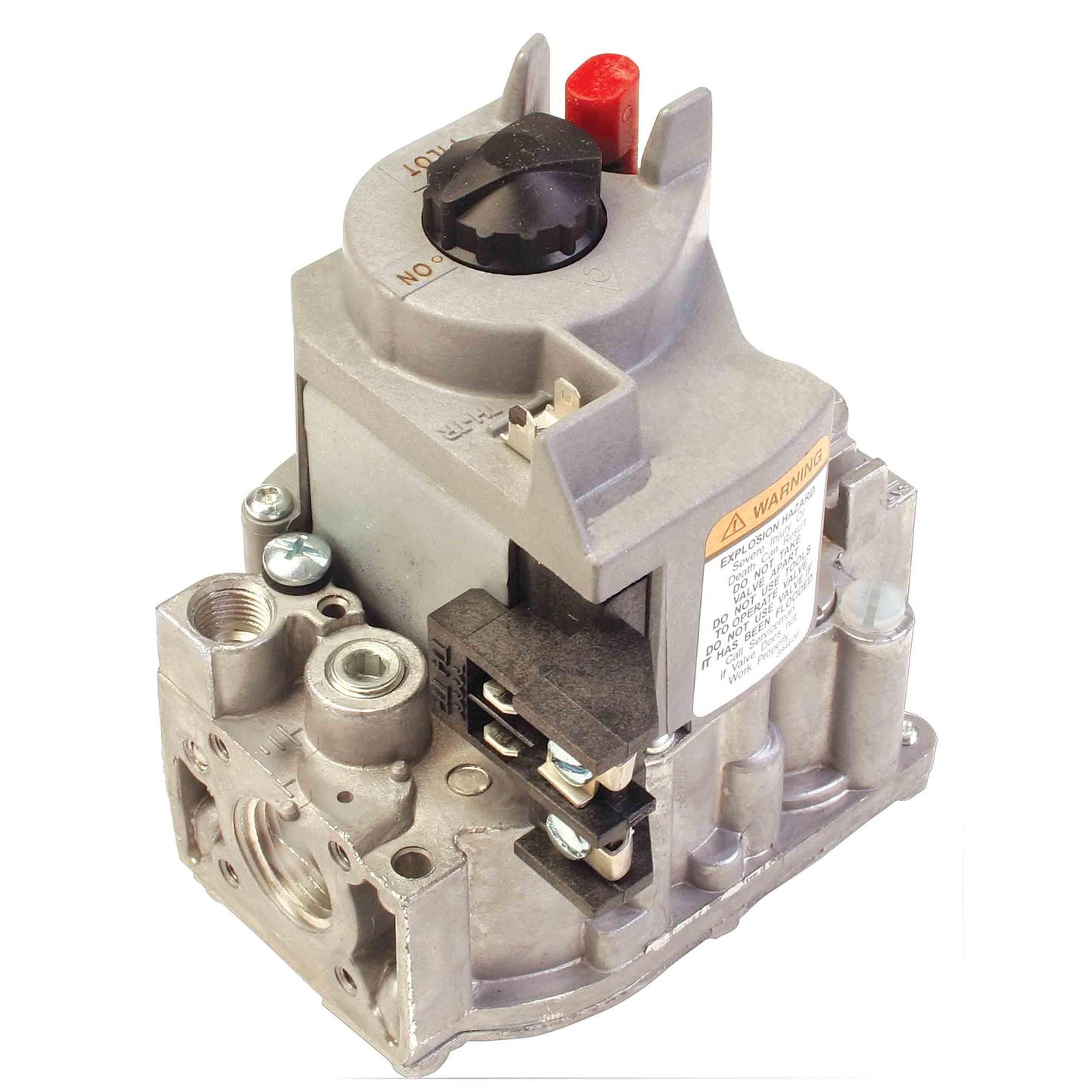

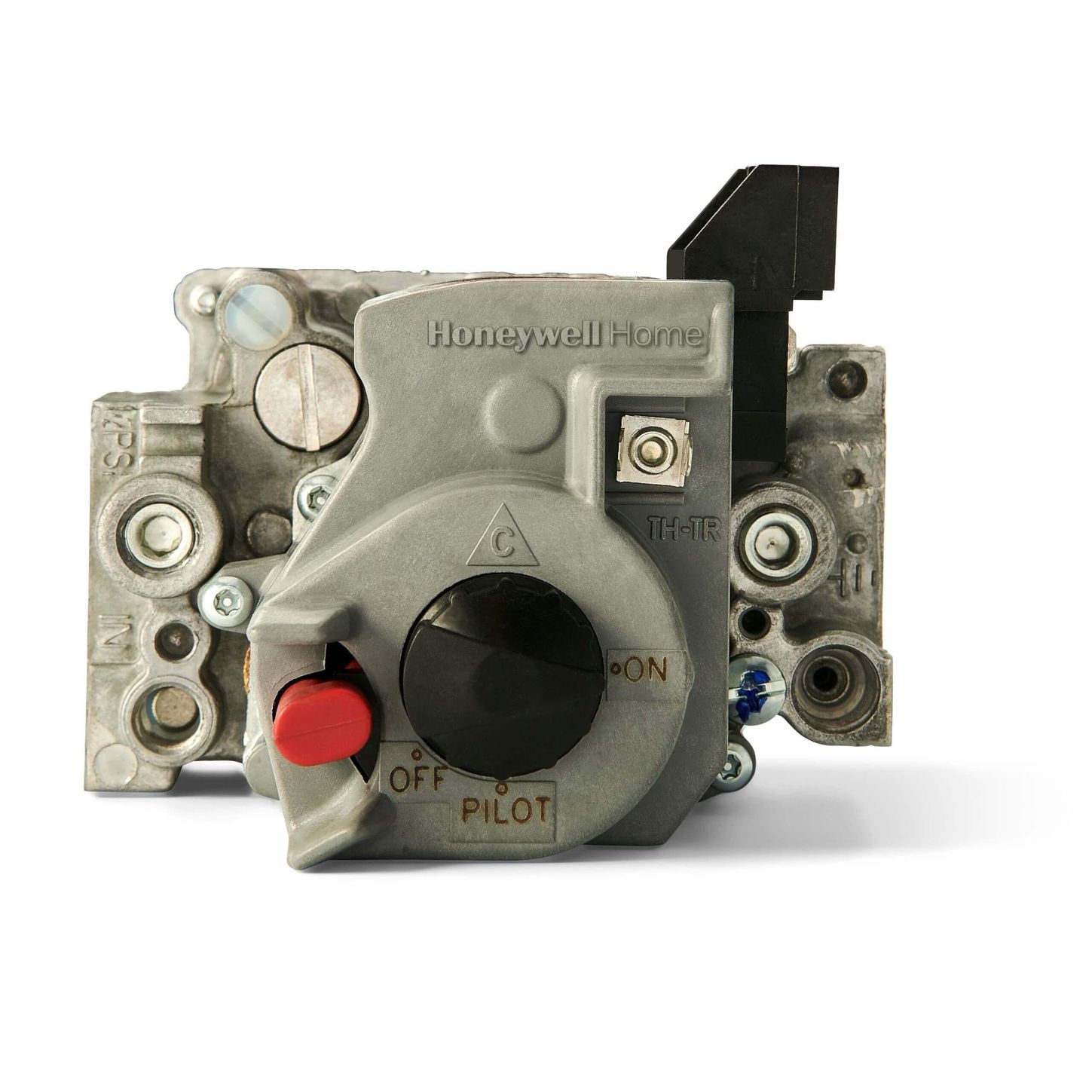

Resideo VR8200A2132

24Vac Dual Standing Pilot Gas Valve

• Combination gas controls for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 20 to 200 cfh.
• Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
• Compact size.
• Provide two automatic valves.
• Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
• Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
• Meet codes requiring dual safety shutoff.

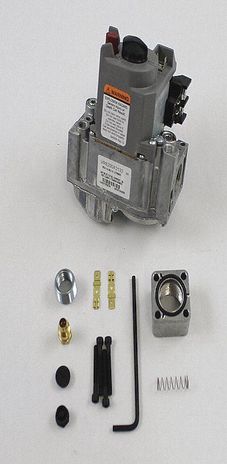

• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
• LITE-RITE (OFF-PILOT-ON) lighting sequence.
• All adjustments, wiring connections and pilot outlet are accessible from top of control.
• Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
• Compatible with ECO connector.

Specifications:

• Type: Single Stage
• Opening Characteristics (standard, step): Standard
• Capacity @ 1 in. p.d.: 130,000 BTU/hr; 20,000 BTU/hr minimum
• Pressure Ratings: ½ psi, or 3.5 kPa
• Pressure Regulator Setting: 3.5 in. wc (psi), or 0.87 kPa
• Pilot Gas Outlet: Compression fitting for ¼ in. OD tubing
• Pressure Tapping: ⅛ in. NPT with plug
• Electrical Connections: Combination screw and ¼ in. male quick connects
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Anticipator Setting: 0.5 A
• Temperature Range: 0° to 175°F, or -18° to +79°C
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• Dimensions (in.): 5 3/16 in high x 4 ⅛ in. wide x 3 ¼ in. deep
