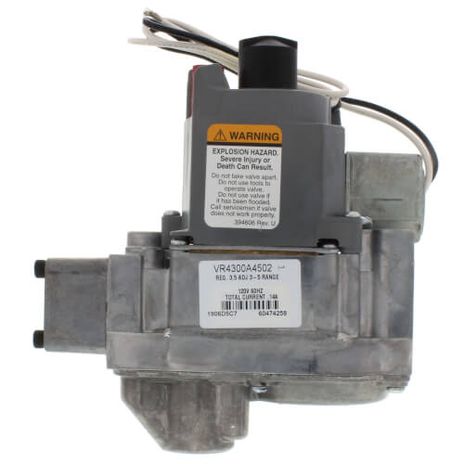

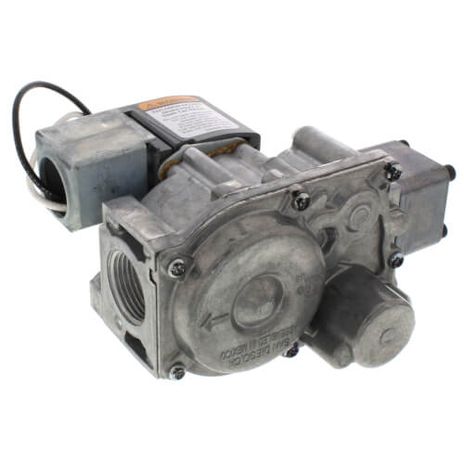

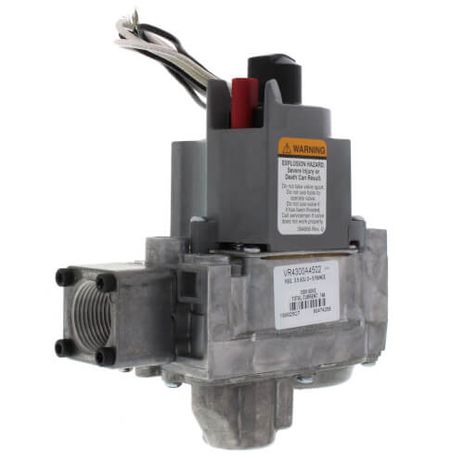

Resideo VR4300A4502

Single Stage Gas Controls for Standing Pilot appliance, ¾ in x ¾ in, Standard Opening, 120 V AC, Natural Gas/LP with included conversion kit

Product Overview:

• Combination gas control for use in 120 Vac, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

Product Features:

• Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
• Compact size
• Provides two automatic valves
• Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
• Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
• Meets codes requiring dual safety shut-off
• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
• All adjustments, wiring connections and pilot outlet are accessible from top of control
• Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
• Compatible with ECO connector
• LITE-RITE (OFF-PILOT-ON) lighting sequence

Product Specifications:

• Description: 120 Vac Dual Standing Pilot Gas Valve with ¾ in. x ¾ in. inlet\outlet, standard opening and 3.5 in. wc pressure regulator setting
• Type: Single Stage
• Ignition Type: Standing Pilot
• Type of Gas: Natural
• Inlet/Outlet Size (in.): ¾ in. x ¾ in.
• Body Pattern: Straight-through with flange
• Opening Characteristics (standard, step): Standard
• Capacity @ 1 in. p.d.: 300,000 BTU/hr; 30,000 BTU/hr minimum
• Pressure Ratings (psi): ½ psi
• Pressure Ratings (kPa): 3.5 kPa
• Pressure Regulator Setting (psi): 3.5 in. wc
• Pressure Regulator Setting (kPa): 0.87 kPa
• Pilot Gas Outlet: Compression fitting for ¼ in. OD tubing
• Pressure Tapping: ⅛ in. NPT with plug
• Electrical Connections: ¼ in. male quick connects; 24 in. (610 mm) leadwire
• Electrical Ratings: 120 Vac
• Frequency: 60 Hz
• Anticipator Setting: 0.13 A
• Temperature Range (F): 0 F to 175 F
• Temperature Range (C): -18 C to +79 C
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• Includes: Two ¾ x ½ in. reducer bushings, 393691 Natural to LP gas conversion kit, one ½” x ⅜” reducer bushing
• Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025006; CGA Design Certified: File No. L2025006
