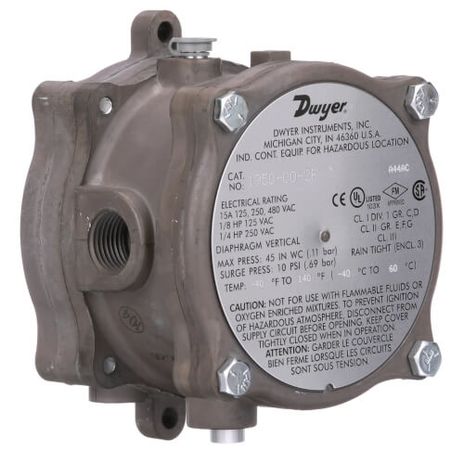

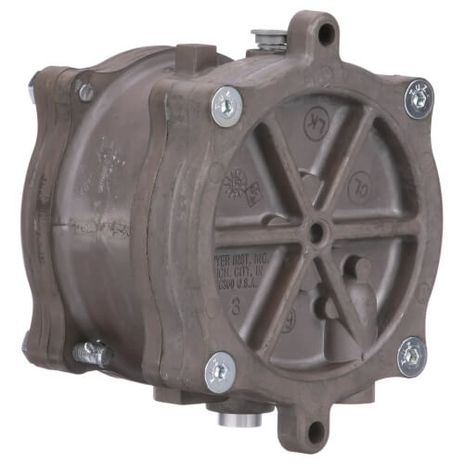

Dwyer 1950-20-2F

SKU: CS739882MPN: 1950-20-2FAlternate Part #: 114037-06

1950-20-2F PR SW 4-20 INWC

Dwyer 1950-20-2F
Dwyer 1950-20-2F
Dwyer 1950-20-2F
Dwyer 1950-20-2F
Dwyer 1950-20-2F
$376.30
Unit
7 in stock
remove
add

Product Details

Differential pressure switch, range 4-20” w.c., approx. deadband @ min. set point 0.40, approx. deadband @ max. set point 0.60.

Attributes

Commodity Code 2800
Compliance CE, CSA, FM, UL.
Electrical Connection 3 screw type, common, normally open and normally closed.
Electrical Rating 15 A @ 125, 250, 480 VAC, 60 Hz. Resistive ⅛ HP @ 125 VAC, ¼ HP @ 250 VAC, 60 Hz.
Enclosure Rating NEMA 3 (IP54), NEMA 7 and 9.
Mounting Orientation Diaphragm in vertical position. Consult factory for other position orientations.
Pressure Limit Continuous: 1950’s - 45” w.c. (0.11 bar); 1950P’s - 35 psi (2.41 bar); 1950P-50 only - 70 psi (4.83 bar). Surge: 1950’s - 10 psi (0.69 bar); 1950P’s - 50 psi (3.45 bar); 1950P-50 only - 90 psi (6.21 bar).
Process Connection ⅛” female NPT.
Service Air and non-combustible, compatible gases.
Set Point Adjustment Screw type on top of housing.
Switch Type Single-pole double-throw (SPDT).
Wetted Material Consult factory.

Specifications

SKUCS739882
MPN1950-20-2F
Alternate Part #114037-06
