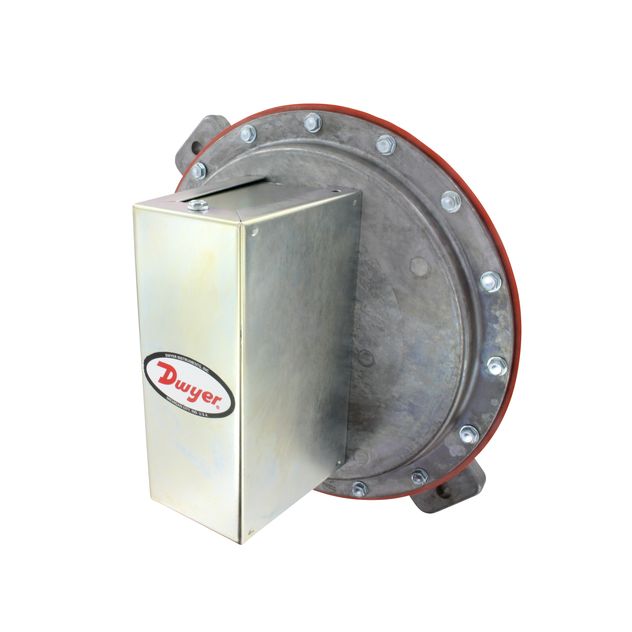

Dwyer 1627-20
SKU: CS662687MPN: 1627-20Alternate Part #: 113014-00
1627-20 PRESS SW 8.0-24 INWC
$591.67
UnitAvailable on backorder
Product Details
Dual pressure switch, range 8.0-24” w.c., .50 min. deadband, 1.20 max. deadband, 5.0 adj. diff. between set points.
Attributes
| Commodity Code | 2200 |
| Compliance | CE. |
| Electrical Connection | 3 screw type, common, normally open and normally closed. |
| Electrical Rating | 15 A @ 120 to 480 VAC, 60 Hz. Resistive, ⅛ HP @ 125 VAC, ¼ HP @ 250 VAC, 60 Hz. |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Pressure Limit | Max. 50 in. w.c. (12.44 kPa) continuous, 2 psig (13.79 kPa) surge. |
| Process Connection | ⅛” female NPT. |
| Repeatability | ±1%. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Screw adjustment. |
| Switch Type | 1626: SPDT; 1627: (2) SPDT. |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS662687 |
|---|---|
| MPN | 1627-20 |
| Alternate Part # | 113014-00 |
