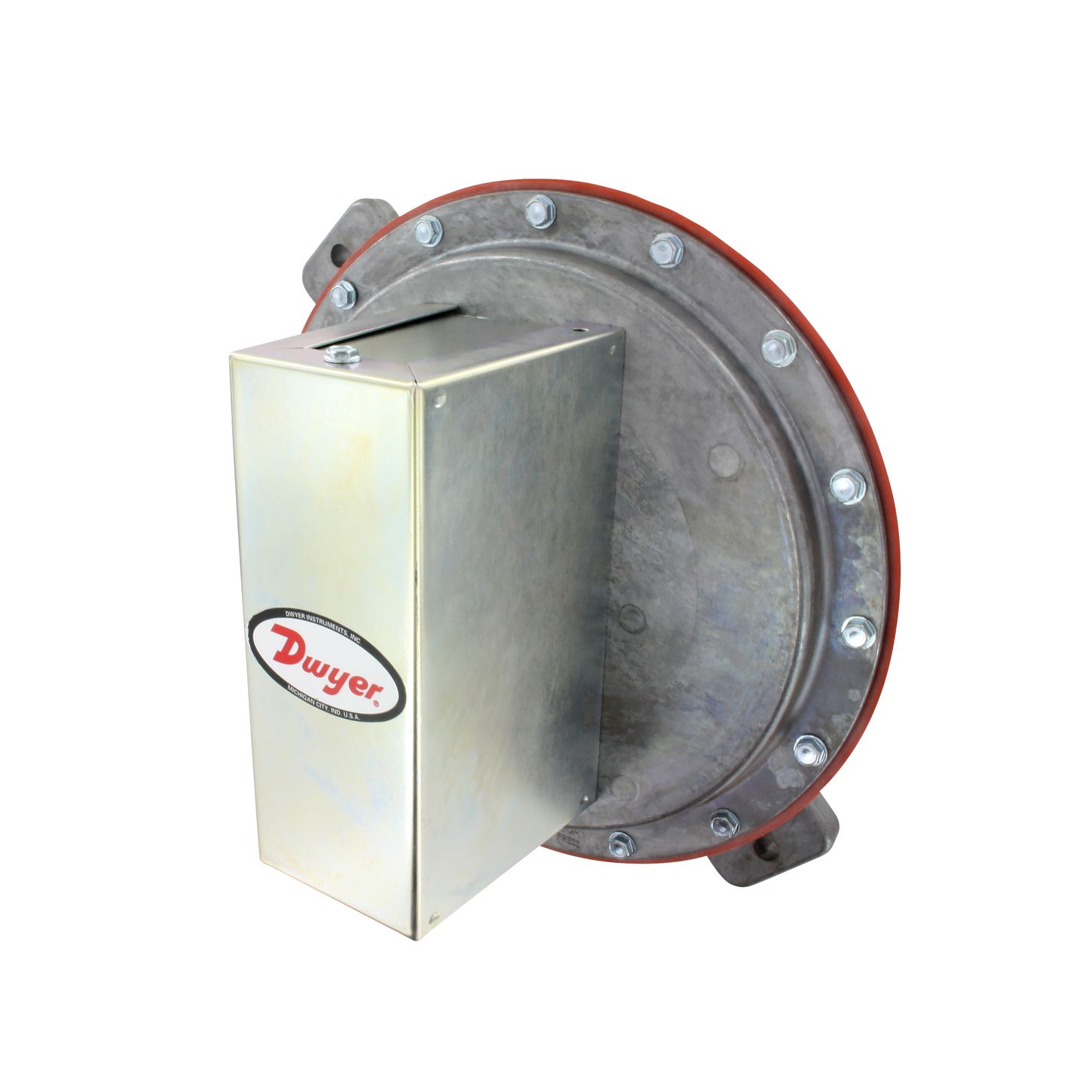

Dwyer 1627-5
SKU: CS1054517MPN: 1627-5Alternate Part #: 113012-00
1627-5 PRESS SW 0.5-6.0 INWC
$591.67
UnitAvailable on backorder
Product Details
Dual pressure switch, range .5-6.0” w.c., .15 min. deadband, .35 max. deadband, 1.2 adj. diff. between set points.
Attributes
| Commodity Code | 2200 |
| Compliance | CE. |
| Electrical Connection | 3 screw type, common, normally open and normally closed. |
| Electrical Rating | 15 A @ 120 to 480 VAC, 60 Hz. Resistive, ⅛ HP @ 125 VAC, ¼ HP @ 250 VAC, 60 Hz. |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Pressure Limit | Max. 50 in. w.c. (12.44 kPa) continuous, 2 psig (13.79 kPa) surge. |
| Process Connection | ⅛” female NPT. |
| Repeatability | ±1%. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Screw adjustment. |
| Switch Type | 1626: SPDT; 1627: (2) SPDT. |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS1054517 |
|---|---|
| MPN | 1627-5 |
| Alternate Part # | 113012-00 |
