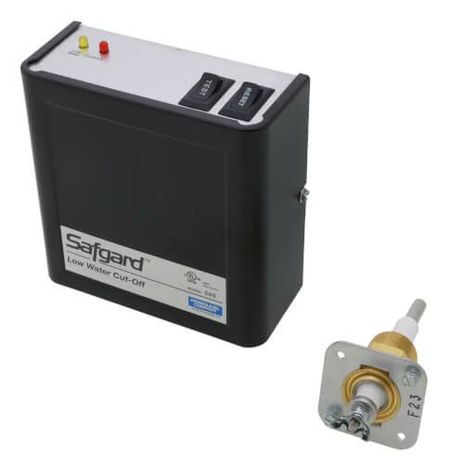

Hydrolevel 45-500

Safgard 500 Low Water Cutoff w/ Manual Reset \& Test Button/Light - 24V

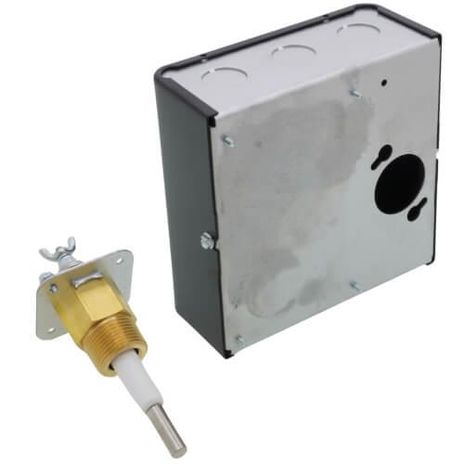

Hydrolevel low water cut-offs are electrically operated. A probe is installed in the boiler shell or external manifold and is connected to the control unit. Water is used as a conductor to complete the circuit between the probe and the boiler shell. When water is in contact with the probe, the circuit is completed; when the water level drops below the probe, the circuit opens. Hydrolevel controls provide contacts to de-energize the burner circuit in a low water condition.

Features

• Reliable Electronic Operation
• Easy to Install
• Low Maintenance; No Blowdowns
• No Moving Parts to Wear or Stick
• Time Delay Prevents Burner Short Cycling
• Inexpensive to Own and Operate
• Manual Reset
• Burner Circuit Test Button
• LED Indicating Lights
• Meets ASME CSD-1 Requirements for Commercial Water Boilers

Specifications

• Power Consumption: 2 VA
• Switching Capacity: 50 VA
• Switch Contacts: SPDT
• Max. Pressure: 160 PSI
