ACI B6-CO/H2-100L

Name: ACI B6-CO/H2-100L
Brand: ACI
SKU: CS6291134
Price: 1307.38 USD
Availability: OutOfStock

SKU: CS6291134MPN: B6-CO/H2-100LAlternate Part #: 151273

BACnet MSTP, Smart Sensor, Combination, Main: CO 0-250 ppm, Remote: H2 0-100% LEL, 3 SPDT Relays, NEMA 4X

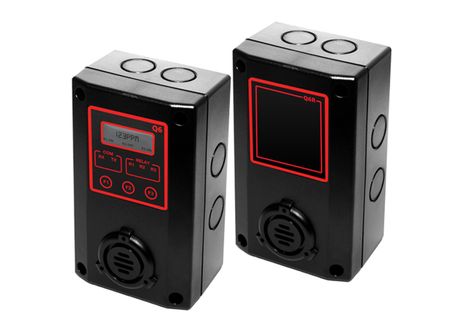

ACI B6-CO/C3H8-100L, B6-CO/CH4-100L, B6-CO/H2-100L

$1,307.38

Unit

Available on backorder

Quantity

remove

add

Product Details

BACnet MSTP, Smart Sensor, Combination, Main: CO 0-250 ppm, Remote: H2 0-100% LEL, 3 SPDT Relays, NEMA 4X

Product Configuration

Series	B6 (CO-Dual Sensor, BACnet)
Gas Type	Carbon Monoxide and Hydrogen

Product Family Specifications

Buzzer	80 dB at 3.94 (10 cm), 2700 Hz (3 Programmable Tones)
Display	LCD Graphic Display with backlight (Displays: TWA, STEL and Concentration)
Gas Types	Combustible, Toxic Gases/Oxygen Sensor \& Infrared
Sensor Type	Main: Carbon Monoxide (CO) Remote: See Gas Sensor Selection \& Specification Table on back of data sheet
Warm Up Time	24 Hours (Allow 24 hours before calibrating sensor after installation
Fuse Protection	0.750A Polyswitch; (Resets after fault is cleared \& power to circuit is removed)
Life Expectancy	Electochemical (Toxic): 2 to 3 Years, typical \| Oxygen/Hydrogen (Toxic): 18 months, typical Catalytic (Combustible): 3 years, typical \| CO: 7 years, typical
Unit Shelf Life	Electrochemical (Toxic): 6 months from date of purchase Catalytic (Combustible): 1 year from date of purchase
Communication Wire	Belden 9841 or Equivalent, 120 Ohms Input Impedance
Operating Pressure	14.696 psi (1.0132 bar) +/- 10%
Supply Voltage (B6)	VDC Supply Voltage: 24 VDC nominal (+18 to 30 VDC) (AC Power can be grounded or non-grounded) VAC Supply Voltage: 24 VAC nominal (+15 to 24 VAC) (AC Power must not be grounded)
Supply Voltage (Q6)	VDC Supply Voltage: 24 VDC nominal (+18 to 30 VDC) (AC Power must not be grounded) VAC Supply Voltage: 24 VAC nominal (+15 to 24 VAC) (AC Power must not be grounded)
Operating Environment	Indoor Environment only
Communication Protocol	Q6 Communication Protocols: RS-485 Modbus RTU/OptoMux (Proprietary QEL Controller Protocol) B6 Communication Protocols: RS-485 Serial BACnetTM MS/TP (Master and Slave; Default: Master)
Recommended Maintenance	Catalytic (Combustible): Accuracy \& Bump test every 3 months or as required by Code Electrochemical (Toxic): Accuracy \& Bump test every 6 months or as required by Code Oxygen/Hydrogen (Toxic): Calibrate every 3 months
Factory Calibrated Ranges	See Gas Sensor Selection \& Specification Table on back of data sheet
Operating Temperature / RH	See Sensor Selection \& Specification Table on back of data sheet \| 5 to 95% RH, non-condensing
Replacement Sensor Modules	See additional on-line Product Literature or Contact ACI
B6 Communication Baud Rates	9600, 19200, 38400, 76800 Bits/Second (Default: 38400)
Q6 Communication Baud Rates	1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 76800 Bits/Second (Default: 4800)
Terminal Block Torque Rating	0.37 ft-lb (0.502 Nm) Nominal
Storage Temperature \| RH Range	32 to 68°F (0 to 20°C) \| 5 to 95% RH, non-condensing
Wiring Connections / Wire Size	De-pluggable Screw Terminal Blocks \| 16 to 24 AWG (0.2047 to 1.301 mm) Shielded Twisted Pair
Coverage Area / Mounting Height	See Gas Sensor Selection \& Specification Table on back of data sheet
Supply Current / Power Consumption	0.3A maximum \| 8.4 VA
Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating)	Plastic Enclosure; Ploycarbonate Lexan; UL94 V-0, NEMA 4, 4X, 12 and 13 (IP66)
