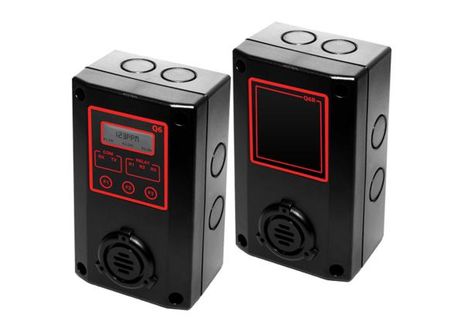

ACI B6-CO/NO2-10P

Name: ACI B6-CO/NO2-10P
Brand: ACI
SKU: CS6289520
Price: 1261.20 USD
Availability: OutOfStock

SKU: CS6289520MPN: B6-CO/NO2-10PAlternate Part #: 146119

BACnet MSTP, Smart Sensor, Combination, Main: CO 0-250 ppm, Remote: NO2 0-10 ppm, 3 SPDT Relays, NEMA 4X

$1,261.20

Unit

Available on backorder

Quantity

remove

add

Product Details

BACnet MSTP, Smart Sensor, Combination, Main: CO 0-250 ppm, Remote: NO2 0-10 ppm, 3 SPDT Relays, NEMA 4X

Product Configuration

Series	B6 (CO-Dual Sensor, BACnet)
Gas Type	CO and NO2

Product Family Specifications

Buzzer	80 dB at 3.94 (10 cm), 2700 Hz (3 Programmable Tones)
Display	LCD Graphic Display with backlight (Displays: TWA, STEL and Concentration)
Gas Types	Combustible, Toxic Gases/Oxygen Sensor \& Infrared
Sensor Type	Main: Carbon Monoxide (CO) Remote: See Gas Sensor Selection \& Specification Table on back of data sheet
Warm Up Time	24 Hours (Allow 24 hours before calibrating sensor after installation
Fuse Protection	0.750A Polyswitch; (Resets after fault is cleared \& power to circuit is removed)
Life Expectancy	Electochemical (Toxic): 2 to 3 Years, typical \| Oxygen/Hydrogen (Toxic): 18 months, typical Catalytic (Combustible): 3 years, typical \| CO: 7 years, typical
Unit Shelf Life	Electrochemical (Toxic): 6 months from date of purchase Catalytic (Combustible): 1 year from date of purchase
Communication Wire	Belden 9841 or Equivalent, 120 Ohms Input Impedance
Operating Pressure	14.696 psi (1.0132 bar) +/- 10%
Supply Voltage (B6)	VDC Supply Voltage: 24 VDC nominal (+18 to 30 VDC) (AC Power can be grounded or non-grounded) VAC Supply Voltage: 24 VAC nominal (+15 to 24 VAC) (AC Power must not be grounded)
Supply Voltage (Q6)	VDC Supply Voltage: 24 VDC nominal (+18 to 30 VDC) (AC Power must not be grounded) VAC Supply Voltage: 24 VAC nominal (+15 to 24 VAC) (AC Power must not be grounded)
Operating Environment	Indoor Environment only
Communication Protocol	Q6 Communication Protocols: RS-485 Modbus RTU/OptoMux (Proprietary QEL Controller Protocol) B6 Communication Protocols: RS-485 Serial BACnetTM MS/TP (Master and Slave; Default: Master)
Recommended Maintenance	Catalytic (Combustible): Accuracy \& Bump test every 3 months or as required by Code Electrochemical (Toxic): Accuracy \& Bump test every 6 months or as required by Code Oxygen/Hydrogen (Toxic): Calibrate every 3 months
Factory Calibrated Ranges	See Gas Sensor Selection \& Specification Table on back of data sheet
Operating Temperature / RH	See Sensor Selection \& Specification Table on back of data sheet \| 5 to 95% RH, non-condensing
Replacement Sensor Modules	See additional on-line Product Literature or Contact ACI
B6 Communication Baud Rates	9600, 19200, 38400, 76800 Bits/Second (Default: 38400)
Q6 Communication Baud Rates	1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 76800 Bits/Second (Default: 4800)
Terminal Block Torque Rating	0.37 ft-lb (0.502 Nm) Nominal
Storage Temperature \| RH Range	32 to 68°F (0 to 20°C) \| 5 to 95% RH, non-condensing
Wiring Connections / Wire Size	De-pluggable Screw Terminal Blocks \| 16 to 24 AWG (0.2047 to 1.301 mm) Shielded Twisted Pair
Coverage Area / Mounting Height	See Gas Sensor Selection \& Specification Table on back of data sheet
Supply Current / Power Consumption	0.3A maximum \| 8.4 VA
Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating)	Plastic Enclosure; Ploycarbonate Lexan; UL94 V-0, NEMA 4, 4X, 12 and 13 (IP66)
