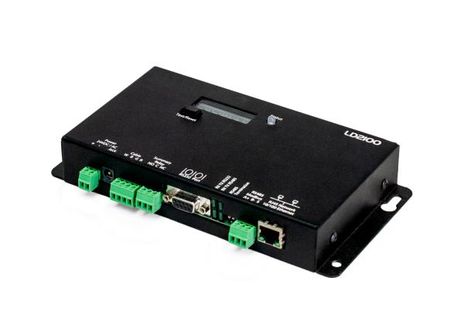

ACI LD2100

Name: ACI LD2100
Brand: ACI
SKU: CS6290432
Availability: OutOfStock

SKU: CS6290432MPN: LD2100Alternate Part #: 148267

Distance-Read Leak Detection Controller, LED Display, Web Enabled, LC-KIT

Product Details

Distance-Read Leak Detection Controller, LED Display, Web Enabled, LC-KIT

Controller Type	Distance Read
Temperature Series	None

Relay Output	SPDT (Form C) Dry Contacts
Product Weight	0.438 lbs (0.199 kg)
Supply Current	0.1 Amp Maximum
Supply Voltage	24 VAC or 24VDC (+/- 10%) Note: If a DC power supply is used, the A/SLD will be a latching device (once an alarm is detected, the spot detector will remain in an alarm state until power is cycled to the A/SLD)
Agency Approvals	CE; ETL listed: conforms to UL 61010-1, EN 61010-1; RoHS compliant
Operating Altitude	15,000ft (4,752m) Maximum
Product Dimensions	2.0”(50.8mm) x 1.55”(39.4mm) x 1.0”(25.4mm)
Relay Contact Rating	1A @ 24VDC, 0.5A resistive @ 120VAC
Operating Humidity Range	5% to 95% non-condensing
Storage Temperature Range	-4 to 158F (-20 to 70C)
Operating Temperature Range	32 to 122F (0 to 50C)
Wire Lead Length (Non-sensing)	14’ (4.27m)
