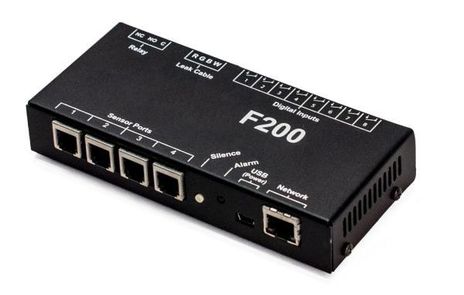

ACI F200

Name: ACI F200
Brand: ACI
SKU: CS6290191
Availability: OutOfStock

SKU: CS6290191MPN: F200Alternate Part #: 147702

Monitoring Appliance (Temp/RH/Leak), (8) DI, (4) RJ-11 Inputs, Relay Output, Alarm, Logging, Trending, Protocols: TCP/IP, HTML, SMTP, Modbus TCP/IP…

Product Details

Monitoring Appliance (Temp/RH/Leak), (8) DI, (4) RJ-11 Inputs, Relay Output, Alarm, Logging, Trending, Protocols: TCP/IP, HTML, SMTP, Modbus TCP/IP, SNMP

Product Configuration

Enclosure	Metal
Controller Type	Zone
Temperature Series	None
Controller Maximum Sensing Cable	200ft (61m)

Product Family Specifications

Relay Output	SPDT (Form C) Dry Contacts
Product Weight	0.438 lbs (0.199 kg)
Supply Current	0.1 Amp Maximum
Supply Voltage	24 VAC or 24VDC (+/- 10%) Note: If a DC power supply is used, the A/SLD will be a latching device (once an alarm is detected, the spot detector will remain in an alarm state until power is cycled to the A/SLD)
Agency Approvals	CE; ETL listed: conforms to UL 61010-1, EN 61010-1; RoHS compliant
Operating Altitude	15,000ft (4,752m) Maximum
Product Dimensions	2.0”(50.8mm) x 1.55”(39.4mm) x 1.0”(25.4mm)
Relay Contact Rating	1A @ 24VDC, 0.5A resistive @ 120VAC
Operating Humidity Range	5% to 95% non-condensing
Storage Temperature Range	-4 to 158F (-20 to 70C)
Operating Temperature Range	32 to 122F (0 to 50C)
Wire Lead Length (Non-sensing)	14’ (4.27m)
