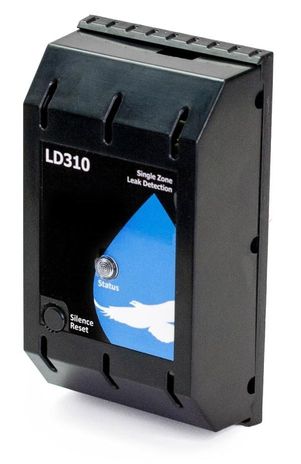

ACI LD310

Name: ACI LD310
Brand: ACI
SKU: CS6290189
Availability: OutOfStock

SKU: CS6290189MPN: LD310Alternate Part #: 147700

Leak Detection Controller, Single Zone, Audible Alarm, LC-KIT

Product Details

Leak Detection Controller, Single Zone, Audible Alarm, LC-KIT

Enclosure	Plastic
Controller Type	Zone
Temperature Series	None
Controller Maximum Sensing Cable	300ft (91m)

Relay Output	SPDT (Form C) Dry Contacts
Product Weight	0.438 lbs (0.199 kg)
Supply Current	0.1 Amp Maximum
Supply Voltage	24 VAC or 24VDC (+/- 10%) Note: If a DC power supply is used, the A/SLD will be a latching device (once an alarm is detected, the spot detector will remain in an alarm state until power is cycled to the A/SLD)
Agency Approvals	CE; ETL listed: conforms to UL 61010-1, EN 61010-1; RoHS compliant
Operating Altitude	15,000ft (4,752m) Maximum
Product Dimensions	2.0”(50.8mm) x 1.55”(39.4mm) x 1.0”(25.4mm)
Relay Contact Rating	1A @ 24VDC, 0.5A resistive @ 120VAC
Operating Humidity Range	5% to 95% non-condensing
Storage Temperature Range	-4 to 158F (-20 to 70C)
Operating Temperature Range	32 to 122F (0 to 50C)
Wire Lead Length (Non-sensing)	14’ (4.27m)
