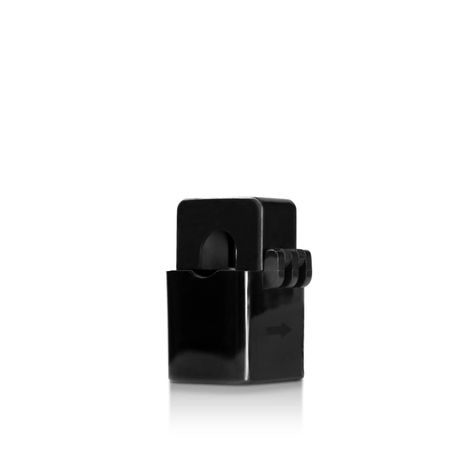

ACI ACUCT-H040-50:333

Name: ACI ACUCT-H040-50:333
Brand: ACI
SKU: CS6290356
Price: 51.14 USD
Availability: OutOfStock

SKU: CS6290356MPN: ACUCT-H040-50:333Alternate Part #: 148164

Current Transformer, 50A, Hinged Split Core, 0.4” Aperture, 333mV Output, 2.5m Leads

$51.14

Unit

Available on backorder

Quantity

remove

add

Product Details

Current Transformer, 50A, Hinged Split Core, 0.4” Aperture, 333mV Output, 2.5m Leads

Leads	8 ft (2.5m)
Amperage Range	0 to 50 Amps

Accuracy	0.5% from 10-120% of Rated Current
Wire Size	22 AWG (0.14 mm2), 600V Rated VW-1, 105°C Black/Brown Twisted Pair (UL 1015)
Core Style	Hinged Split-Core
Lead Length	8.20’ (2.5m) or 32.80’ (10m) See Ordering Grid8.20’ (2.5m) or 32.80’ (10m) See Ordering Grid
Rated Output	333mV @ 20/30/40/50/60/100/200 Amps (see ordering grid)
Product Weight	AcuCT-H040 Series: 0.2lbs (0.09kg) AcuCT-H100 Series: 0.4lbs (0.18kg)
Agency Approvals	ULR, CE, \& RoHS2 Compliant
Lead Wire Colors	White: Positive (+) Black: Negative (-)
Maximum Elevation	9,842 ft (3 Kilometers)
Maximum AC Voltage	600 VAC, Category III
Product Dimensions	AcuCT-H040 Series: 1.64” (41.66 mm) x 1.16” (29.47 mm) x 1.04” (26.42 mm) AcuCT-H100 Series: 2.76” (70.11 mm) x 2.00” (50.80 mm) x 1.52” (38.61 mm)
Wiring Connections	Stripped and Tinned Lead Wires
Monitored Current Type	AC Current
Operating Frequency Range	50/60Hz
Storage Temperature Range	-40 to 185°F (-40 to 85°C)
Operating Temperature Range	5 to 140°F (-15 to 60°C)
Operating/Storage Humidity Range	5 to 95%, non-condensing
Enclosure Material \| Flammability Rating	Black Nylon/UL94V-0
