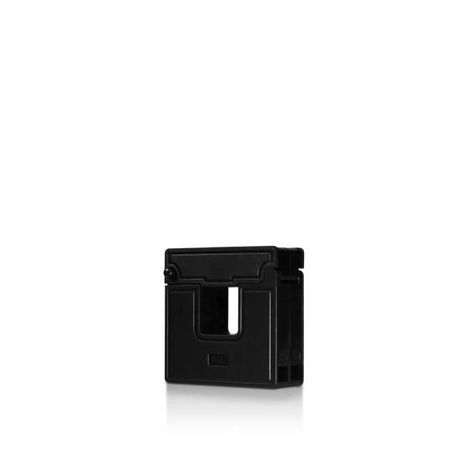

ACI ACUCT-075-50:333

Name: ACI ACUCT-075-50:333
Brand: ACI
SKU: CS6290362
Availability: OutOfStock

SKU: CS6290362MPN: ACUCT-075-50:333Alternate Part #: 148170

Current Transformer, 50A, Split Core, 0.75” Aperture, 333mV Output, 2.5m Leads

Product Details

Current Transformer, 50A, Split Core, 0.75” Aperture, 333mV Output, 2.5m Leads

Amperage Range	0 to 50 Amps

Accuracy	0.5% from 10-120% of Rated Current, IEC 60044-1
Wire Size	22 AWG (0.34 mm2), 600V Rated VW-1, 105°C White/Brown Twisted Pair (UL 1015)
Core Style	Split-Core (non-hinged)
Lead Length	8.20’ (2.5m) or 32.80’ (10m) See Ordering Grid
Rated Output	333mV @ 50/100/200/300/400/600/800/1000 Amps (see ordering grid)
Product Weight	AcuCT-075 Series: 0.2lbs (0.09kg) AcuCT-125 Series: 0.3lbs (0.14kg) AcuCT-200 Series: 0.4lbs (0.18kg)
Agency Approvals	ULR, CE, \& RoHS2 Compliant
Lead Wire Colors	White: Positive (+) Black: Negative (-) Bare-Shield (Polarity Sensitive)
Maximum Elevation	9,842 ft (3 Kilometers)
Withstand Voltage	3,000VAC
Maximum AC Voltage	600 VAC, Category III

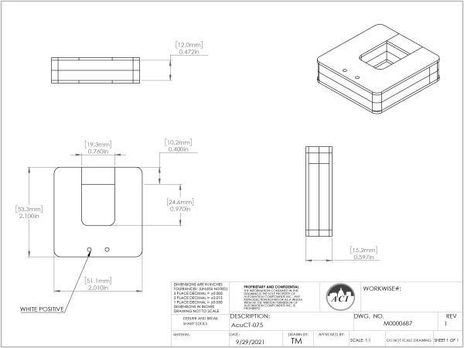

Product Dimensions	AcuCT-075 Series: 2.00” (50.80 mm) x 2.09” (53.30 mm) x 0.669” (17.00 mm) AcuCT-125 Series: 3.25” (82.50 mm) x 3.35” (85.10 mm) x 1.02” (26.00 mm) AcuCT-200 Series: 4.76” (121.00 mm) x 5.00” (127.00 mm) x 1.18” (30.00 mm)
Wiring Connections	Stripped and Tinned Lead Wires
Monitored Current Type	AC Current
Operating Frequency Range	50/60Hz
Storage Temperature Range	-40 to 185°F (-40 to 85°C)
Operating Temperature Range	5 to 140°F (-15 to 60°C)
Operating/Storage Humidity Range	5 to 95%, non-condensing
Enclosure Material \| Flammability Rating	Epoxy Encapsulated/UL94V-0
