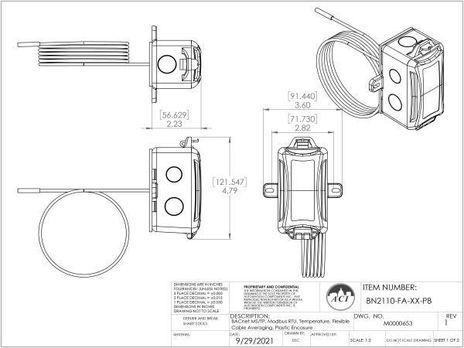

ACI BN2110-FA-12-PB

Name: ACI BN2110-FA-12-PB
Brand: ACI
SKU: CS6289627
Availability: OutOfStock

SKU: CS6289627MPN: BN2110-FA-12-PBAlternate Part #: 146616

BACnet MS/TP, Modbus RTU, Temperature, Flexible Cable Averaging, 12’, Plastic Enclosure

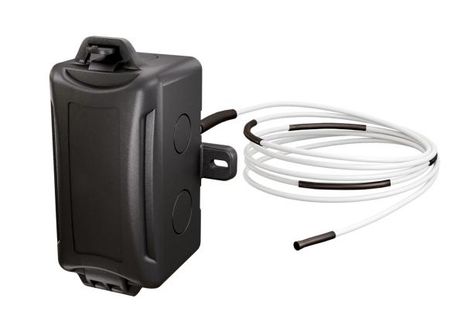

ACI A/AN-FA-8'-PB, A/CP-FA-8'-PB, BN2110-FA-12-PB

Product Details

BACnet MS/TP, Modbus RTU, Temperature, Flexible Cable Averaging, 12’, Plastic Enclosure

Product Configuration

Length	12’

Product Family Specifications

Resolution	+/- 0.1º
Supply Current	25 mA maximum (0.67 VA)
Supply Voltage	12 to 36 VDC / 24 VAC +/- 10%, 50/60 Hz (Reverse Polarity Protected)
Agency Approvals	BTL Certified, CE, RoHS2, WEEE, China RoHS
Enclosure Rating	Plenum Rated
Maximum Distance	4000 ft (1219 m)
Temperature Units	ºF (Factory Default), ºC, ºK (Field Configurable)
Output Update Rate	4 seconds
Network Addressable	0 \= Factory Default \| 1-127 \= Field Selectable
Supported Baud Rates	Auto Baud (Factory Default) \| 9600, 19200, 38400, 57600, 76800, 115200 (Field Selectable)
Tri-Color Status LED	Connection Status
Sensor Cable Diameter	0.170” (4.32mm) nominal
Communication Protocol	BACnet™ MS/TP or Modbus RTU \= Field Selectable; EIA RS-485
Connections \| Wire Size	Screw Terminal Blocks \| 16 AWG (1.31 mm2) to 22 AWG (0.33 mm2)
Accuracy @ 77°F (25°C)	+/- 1.0ºF (+/- 0.5ºC)
Operating Humidity Range	10 to 95% RH, non-condensing
Storage Temperature Range	0 to 75ºF (32 to 167ºC)
Enclosure Temperature Rating	-22 to 194ºF (-30 to 90ºC)
Temperature Measurement Range	0 to 75ºC (32 to 167ºF)
Temperature Calibration Offset	+/- 9ºF (+/- 5ºC) (Field Configurable)
End of Line Termination Resistance	120 Ohms Termination Resistance (Field Selectable)
Modbus Data Bits / Parity / Stop Bit	8 Data Bits \| None/Even/Odd \= Field Selectable \| 1 or 2\= Field Selectable
Sensor Jacket Material \| Cable Ratings	Low Smoke PVC \| CL2P \| CMP Plenum Rated Cable
Foam Pad Material \| Flammability Rating	Neoprene/EPDM/SBR Polymer \| UL94-HBF; FMVSS-302; MIL-R-6130C
Transmitter Operating Temperature Range	-40 to 176ºF (-40 to 80ºC)
Enclosure Material \| Flammability Rating	ABS Plastic \| UL94-HB
