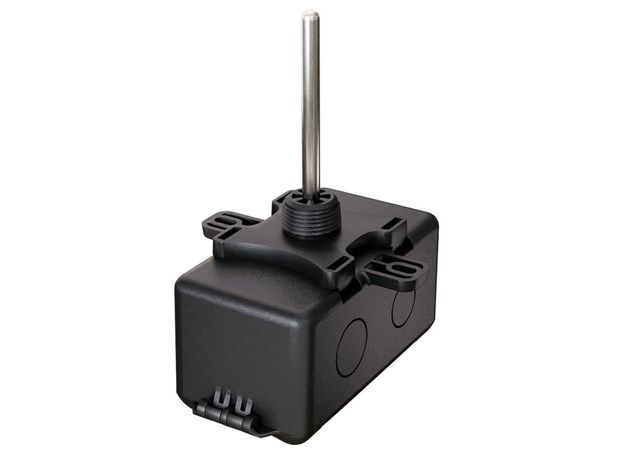

ACI BN2110-D-12-PB

Name: ACI BN2110-D-12-PB
Brand: ACI
SKU: CS6289601
Availability: OutOfStock

SKU: CS6289601MPN: BN2110-D-12-PBAlternate Part #: 146538

BACnet MS/TP, Modbus RTU, Temperature, Duct, SS, 12”, Plastic Enclosure

ACI A/0.1AN-D-12"-PB, A/0.1AN-D-12"-PB-NIST, A/0.1AN-D-6"-PB, A/0.1AN-D-6"-PB-NIST, A/0.1AN-D-8"-PB, A/0.1CP-D-18"-PB, A/0.1CP-D-4"-PB, A/0.1CP-D-8"-PB, A/1.8K-D-12"-PB, A/1.8K-D-18"-PB, A/1.8K-D-4"-PB, A/1.8K-D-6"-PB, A/1.8K-D-8"-PB, A/1.8K-RA-18"-PB, A/1.8K-RA-24"-PB

Product Details

BACnet MS/TP, Modbus RTU, Temperature, Duct, SS, 12”, Plastic Enclosure

Product Configuration

Length	12”
Configuration	Duct

Product Family Specifications

Resolution	+/- 0.1º
Probe Diameter	0.250” (6.35mm)
Probe Material	304 Stainless Steel
Supply Current	25 mA maximum (0.67 VA)
Supply Voltage	12 to 36 VDC / 24 VAC +/- 10%, 50/60 Hz (Reverse Polarity Protected)
Agency Approvals	BTL Certified, CE, RoHS2, WEEE, China RoHS
Maximum Distance	4000 ft (1219 m)
Temperature Units	ºF (Factory Default), ºC, ºK (Field Configurable)
Operating RH Range	10 to 95% RH, non-condensing
Output Update Rate	4 seconds
Network Addressable	0 \= Factory Default \| 1-127 \= Field Selectable
Supported Baud Rates	Auto Baud (Factory Default) \| 9600, 19200, 38400, 57600, 76800, 115200 (Field Selectable)
Tri-Color Status LED	Connection Status
Communication Protocol	BACnet™ MS/TP or Modbus RTU \= Field Selectable; EIA RS-485
Connections \| Wire Size	Screw Terminal Blocks \| 16 AWG (1.31 mm2) to 22 AWG (0.33 mm2)
Accuracy @ 77°F (25°C)	+/- 1.0ºF (+/- 0.5ºC)
Storage Temperature Range	-40 to 185ºF (-40 to 85ºC)
Temperature Measurement Range	-40 to 302ºF (-40 to 150ºC)
Temperature Calibration Offset	+/- 9ºF (+/- 5ºC) (Field Configurable)
End of Line Termination Resistance	120 Ohms Termination Resistance (Field Selectable)
Modbus Data Bits / Parity / Stop Bit	8 Data Bits \| None/Even/Odd \= Field Selectable \| 1 or 2\= Field Selectable
Enclosure Operating Temperature Range	-22 to 194ºF (-30 to 90ºC)
Foam Pad Material \| Flammability Rating	Neoprene/EPDM/SBR Polymer \| UL94-HBF; FMVSS-302; MIL-R-6130C
Transmitter Operating Temperature Range	-40 to 176ºF (-40 to 80ºC)
Enclosure Material \| Flammability Rating	ABS Plastic \| UL94-HB
Thermowell Instrument Thread \| Process Thread	½” NPS (National Pipe Straight) Female Thread \| ½” NPT (National Pipe Tapered) Male Thread
