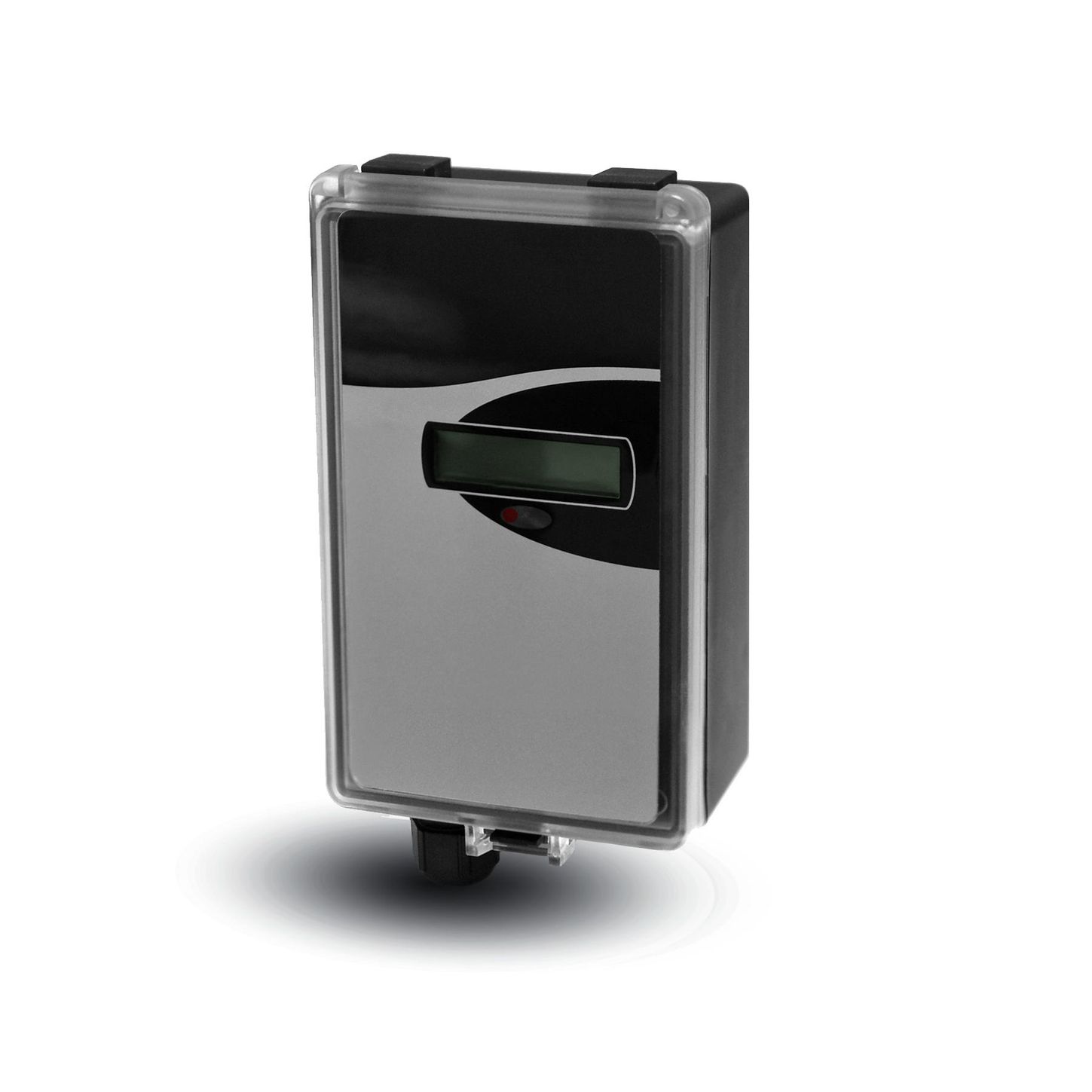

ACI ASENSE-GH-LCD

Name: ACI ASENSE-GH-LCD
Brand: ACI
SKU: CS6289136
Availability: OutOfStock

SKU: CS6289136MPN: ASENSE-GH-LCDAlternate Part #: 144119

Carbon Dioxide Sensor, Greenhouse, 0-2000 PPM, Temp and Relay, Conformally Coated PCB, LCD

Product Details

Carbon Dioxide Sensor, Greenhouse, 0-2000 PPM, Temp and Relay, Conformally Coated PCB, LCD

Product Family Specifications

Display	4 digits, 7 segments LCD with ppm / ºF
Mounting	4-6’ o the oor
Calibration	Recommended annually
Sensor Life	> 15 years
Warm Up Time	\< 1 minute (@ full specs 15 minutes)
Coverage Area	7500 sq. ft maximum
D/A Resolution	10 bits, 10 mV / 0.016 mA
Sensing Method	Non-dispersive infrared (NDIR) with EQC (Eternal Quality Coating)
Supply Voltage	24 VAC/VDC ±20%; 50/60 Hz, 10.5 to 40 VDC maximum (Half-wave rectied)
Agency Approvals	RoHS directive 2011/65/EU, EMC 2004/108/EC, 92/31/EEG including amendments by the CE-marking Directive 93/68/EEC
Relay Trip Point	1000 ppm (factory set)
Annual Zero Drift	\<+/-10 ppm
Power Consumption	\<3W Average
Operating Pressure	+1.6% per 0.145 psi (1 kPa) deviation from normal pressure (1 Atmosphere \= 14.7 psi (1.013 KPa))
Operating RH Range	0 to 85% RH Non-condensing
Product Dimensions	(H) 5.95” (151.9 mm) x (W) 3.33” (84.6 mm) x (D) 1.85” (47 mm)
Extended CO2 Ranges	2000 to 10,000 ppm (factory set or programming cable required)
Diffusion Time (T1/e)	\< 3 minutes
Status LED Indication	Yellow \= Maintenance Support \| Red \= Closed Relay
Electrical Connections	0.00232 in² (1.5 mm²) screw terminals
D/A Conversion Accuracy	Voltage mode: ± 2% of reading ± 50 mV current loop : ± 2% of reading ± 0.3 mA
Relay Deadband/Hysteresis	100 ppm (factory set)
Operating Temperature Range	32ºF to 122ºF (0ºC to 50ºC)
Storage Temperature \| RH Range	-40º to 158ºF (-40º to 70ºC) Non-display, -4º to 122ºF (-20 to 50ºC) Display 0 to 85% RH Non-condensing
Sensing Range: CO2 / Temperature	0 to 2000 ppm \| -4º to 140ºF (-20º to 50ºC)
Enclosure Material \| Flammability Rating	Box; PC \& ABS blend IP65 Rating, Flammability UL94V-0 Cover; Makrolon® 6555 plastic, Flammability rating UL94V-0
