ACI TSENSE

Name: ACI TSENSE
Brand: ACI
SKU: CS6287586
Availability: OutOfStock

SKU: CS6287586MPN: TSENSEAlternate Part #: 135459

Carbon Dioxide Sensor, Analog, Modbus, or BACnet, RH/TEMP, RELAY

Product Details

Carbon Dioxide Sensor, Analog, Modbus, or BACnet, RH/TEMP, RELAY

Product Configuration

Display	None
Gas Type	Carbon Dioxide

Product Family Specifications

Accuracy	±5% @ 20 to 80% RH
Hysteresis	±1% @ 20 to 80% RH
Relay Type	Form C, SPDT 1A @ 50 VAC / 24 VDC
Calibration	Senseair ABC algorithm (Automatic Baseline Correction) Note: Building CO2 levels must drop to 400 ppm same time during the week for ABC to work properly \| If the building is occupied 24 hours / day, ABC must be turned off
Sensor Life	> 15 years (typical) Note: In normal indoor air quality (IAQ) applications \| Corrosive environments are exclude
Annual Drift	\<±0.5% RH
Warm Up Time	1 minute (@ full specs 15 mins)
Coverage Area	7500 sq. ft. maximum
Repeatability	±0.25% RH @ 63 to 82°F (±0.25% RH @ 17 to 28°C)
Response Time	\<6 minutes (Air velocity of 0.15m/s)
Sensing Range	0 to 2000 ppm (CO2), optional 0 to 3000 ppm
Analog Outputs	Out 1 (CO2): 0 to 10V, 0 to 2000 ppm Out 2 (Temperature): 0-10V, 32°F to 122°F (0°C to 50°C) Out 3 (RH): 0 to 10V, 0 to 100% RH
Product Weight	TSENSE: 0.361 lbs (0.166kg) \| TSENSE-LCD: 0.414 lbs (0.188kg)
RH Sensor Type	Capacitive
Sensing Method	Single bean non-dispersive Infrared (NDIR)
Supply Voltage	12 VDC, 24 VAC/VDC, ±20%; (Half-wave rectified) (50-60 Hz)
Agency Approvals	CE, Compliant with CA Bill 841 requirements
Relay Durability	Mechanical: 100,000,000 operations minimum (@ 36,000 operations/hour)t Electrical: 100,000 operations minimum for AC (@ 1,800 operations/hour with rated load) 100,000 operations minimum for DC (@ 1,200 operations/hour with rated load)
Relay Trip Point	CO2: 1000 ppm (factory set)
Self-Diagnostics	Complete function check
Annual Zero Drift	±0.3% of measurement range
Power Consumption	\<0.35W average non-display, \<0.6W display version, \<2W maximum

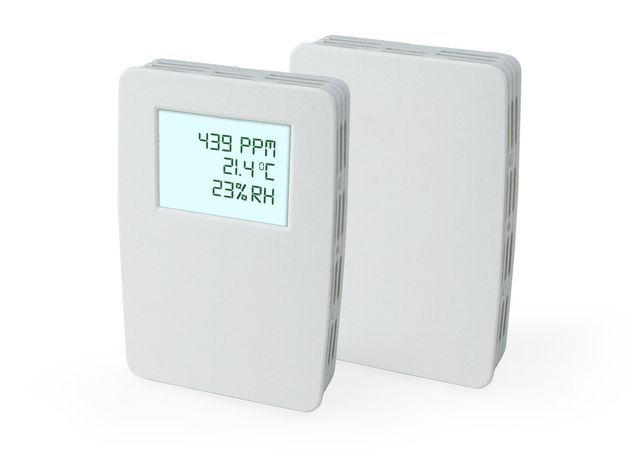

Display (Optional)	Touch display, configurable color LCD with CO2 (PPM), Temperature (°F or °C), and Humidity (%RH)

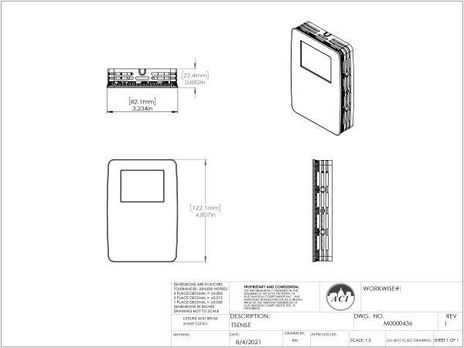

Product Dimensions	(H) 4.92” (125 mm) x (W) 3.35” (85 mm) x (D) 0.87” (22 mm)
Relay Input Source	CO2 (Default) / Temp/RH Configurable via Touchscreen or UIP5 Software
Network Addressable	MAC: 0 to 127 (Default 104)
Pressure Dependence	±1.6% per 0.145 psi (1 kPa) deviation from normal pressure (1 Atmosphere \= 14.7 psi (1.013 KPa))
RH Measurement Range	0-100%
Supported Baud Rates	9600, 19200, 38400, 57600, 76800, 115200
Operating Environment	Residential and Commercial spaces
Communication Protocol	Modbus RTU or BACnet MS/TP
Electrical Connections	0.00232 in2 (1.5 mm2) screw terminals
Extended Range Accuracy	Typically \< (+/- 30 ppm +/- 20% of measured value)
Recommended Maintenance	Maintenance free
Output Signal Resolution	10-bits, 10mV/steps, , 0.1% steps of full ppm/°C/%RH range
Relay Deadband/Hysteresis	100 ppm (factory set)
Storage Temperature Range	-22°F to 158°F (-30°F to 70°F)
Operating Temperature / RH	32°F to 122°F (0°C to 50°C) \| 0-95% RH Non-condensing
Coverage Area / Mounting Height	7500 ft2 (696.7 m2) \| 4-6’ off the floor
Sensor Operating Temperature Range	32°F to 122°F (0°C to 50°C)
Enclosure Material \| Flammability Rating	Bayblend FR3000 (PC \& ABS blend), Flammability rating UL 94V-0
