ACI A/AN-FRZ2"-30'

Name: ACI A/AN-FRZ2"-30'
Brand: ACI
SKU: CS6286094
Availability: OutOfStock

SKU: CS6286094MPN: A/AN-FRZ2"-30'Alternate Part #: 121305

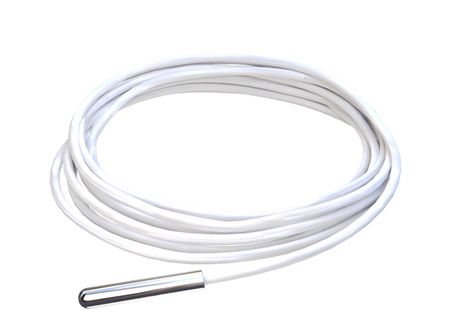

10,000 Ohm Thermistor (Type III), 2” Freezer Probe 316 SS, 30’

Product Details

10,000 Ohm Thermistor (Type III), 2” Freezer Probe 316 SS, 30’

NIST	None
Sensor	AN (10K Ω, Type III)
Enclosure	None

Accuracy	+/- 0.5ºC (+/-0.9ºF) over 25 to 70°C(-13 to 158°F):
Stability	Sensor Dependent; Contact ACI for more information on specific sensor
Number Wires	Three Conductors (White and Two Red Wires); Polarity Sensitive (Tie Red wires together)
Probe Length	2” (50.8 mm)
Probe Diameter	0.1875” (4.76 mm)
Probe Material	316 Stainless Steel
Product Weight	A/xxK-FRZ2”-30’: 0.36 lbs. (0.163 kg) \| A/xxK-FRZ2”-4X-30’: 0.60 lbs. (0.272 kg)
Agency Approvals	WEEE, RoHS2
Enclosure Rating	NEMA 4X (IP 66)
Number Sensing Points	One
Operating Humidity Range	10 to 95% RH, non-condensing
Storage Temperature Range	-40 to 80ºC (-40 to 176ºF)
Power Dissipation Constant	A/CP-Series \& A/AN Series: 2 mW/ºC
Sensor Type \| Sensor Curve	Thermistor \| Non-Linear, NTC (Negative Temperature Coefficient)
Lead Length \| Conductor Size	30’ (9.15 m) \| 0.106” nominal (2.69 mm)
Sensor Output @ 25ºC (77ºF)	A/CP (Type II): 10KΩ nominal \| A/AN (Type III): 10KΩ nominal
Sensor Operating Temperature Range	-40 to 125ºC (-40 to 257ºF)
Conductor Size \| Conductor Material	24 AWG (0.51 mm) \| Silver Plated Copper
Lead Wire Insulation \| Jacket Color	FEP/FEP (Teflon) Jacketed Cable \| White
Cable Gland IP Rating \| Torque Rating	2.5 Nm (22.127 lb. inch)
Enclosure Material \| Flammability Rating	Polystyrene \| UL94-V2
Cable Gland Sleeve Material \| Wire Clamping Size	0.098” (2.5 mm) to 0.256” (6.5 mm) \| IP 68 (NEMA 6P)
Cable Gland (Fitting) Size \| Hole Size \| Material	PG7 \| 15 mm (0.591”) \| Polyamide 6
