ACI A/1K-NI-FRZ2"-30'
SKU: CS6285955MPN: A/1K-NI-FRZ2"-30'Alternate Part #: 120473

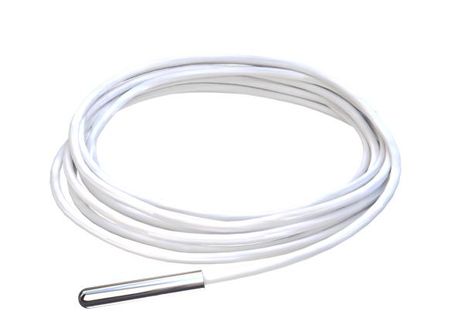

1,000 Ohm Nickel RTD, 2” Freezer Probe 316 SS, 30’
Contact us for pricing and availability
Product Details
1,000 Ohm Nickel RTD, 2” Freezer Probe 316 SS, 30’
Product Family Specifications
| Number Wires | Three Conductors (White and Two Red Wires); Polarity Sensitive (Tie Red wires together) |
|---|---|
| Number Sensing Points | One |
| Storage Temperature Range | -40 to 80ºC (-40 to 176ºF) |
| Sensor Type | Sensor Curve | Nickel RTD | PTC (Positive Temperature Coefficient) |
| Operating Temperature Range | -55 to +200°C (-67 to 392°F) |
| Lead Length | Conductor Size | 10’ (3.05 m) or 30’ (9.15 m) | 0.106” nominal (2.69 mm) |
| Sensor Output @ 21.1ºC (70ºF) | 1000 Ohms nominal |

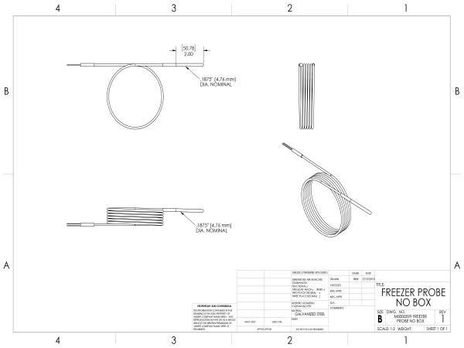

| Probe Material | Length | Diameter | 316 Stainless Steel | 2” (50.8 mm) | 0.1875” (4.76 mm) nominal |
| Conductor Size | Conductor Material | 24 AWG (0.51 mm) | Silver Plated Copper |
| Lead Wire Insulation | Jacket Color | FEP/FEP (Teflon) Jacketed Cable | White |
| Din Standard | Temperature Coeffcient | Din 43760 | 6370 ppm/ºC |
Specifications
| SKU | CS6285955 |
|---|---|
| MPN | A/1K-NI-FRZ2"-30' |
| Alternate Part # | 120473 |
