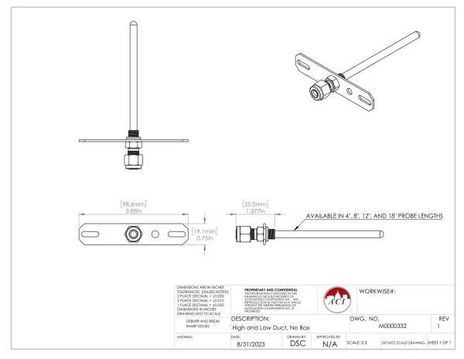

ACI A/1K-3W-LT-DO-4"
SKU: CS6285945MPN: A/1K-3W-LT-DO-4"Alternate Part #: 120405
1,000 Ohm (Three Wires) RTD, Low Temperature Duct, Without Box, 4” 316 SS
Contact us for pricing and availability
Product Details
1,000 Ohm (Three Wires) RTD, Low Temperature Duct, Without Box, 4” 316 SS
Product Configuration
| Length | 4” |
|---|---|
| Sensor | 1K-3W-LT (1,000 Ω, Low Temp) |
Product Family Specifications
| Stability | +/- 0.03% after 1000 Hours @ 300ºC (572ºF) |
|---|---|
| Sensor Type | Platinum RTD |
| Number Wires | A/100-2W-DO Series and A/1K-2W-DO Series: Two (Non-Polarity Sensitive) A/100-3W-DO Series and A/1K-3W-DO Series: Three (Polarity Sensitive) |
| Sensor Curve | PTC (Positive Temperature Coefficient) |
| Probe Diameter | 0.250” (6.35mm) |
| Sensor Accuracy | +/- 0.06% Class A (Tolerance Formula: +/- ºC \= (0.15ºC + (0.002 * |t|)) where |t| is the absolute value of Temperature above or below 0ºC in ºC) -40ºC (-40ºF): +/- 0.23ºC (+/- 0.414ºF) 0ºC (32ºF): +/- 0.15ºC (+/- 0.27ºF) 115ºC (239ºF): +/- 0.38ºC (+/- 0.69ºF) |
| Agency Approvals | CE, RoHS2, WEEE |
| Conductor Material | Silver Plated Copper |
| Number Sensing Points | One |
| Operating Humidity Range | 10 to 95% RH, non-condensing |
| Storage Temperature Range | -40 to 85ºC (-40 to 185ºF) |
| Operating Temperature Range | -40 to 115ºC (-40 to 239ºF) |
| Lead Length | Conductor Size | 4”, 6” and 8” Probes: 14” (35.6 cm) 12” and 18” Probes: 24” (61cm) | 22 AWG (0.65mm) |
| Sensor Output @ 0ºC (32ºF) | A/100-xW-DO Series: 100 Ohms nominal A/1K-xW-DO Series: 1000 Ohms nominal |
| Response Time (63% Step Change) | 8 Seconds nominal |
| Probe Material | Flange Material | 304 Stainless Steel | Galvanized Steel |
| Lead Wire Insulation | Wire Rating | Etched Teflon (PTFE) Colored Leads | MIL-W-16878/4 (Type E) |
| Din Standard | Temperature Coeffcient | DIN EN 60751(IEC 751) | 3850 ppm / ºC |
| Fitting Material | Flammability Rating | Neoprene/EPDM/SBR Polymer | UL94-HBF; FMVSS-302; MIL-R-6130C |
| Self-Heating | Maximum Operating Current | 100 Ohm RTD: 7 mW/ºC (Still Air) | 5 mA 1K Ohm RTD: 4 mW/ºC (Still Air) | 3 mA |
Specifications
| SKU | CS6285945 |
|---|---|
| MPN | A/1K-3W-LT-DO-4" |
| Alternate Part # | 120405 |
You may also like

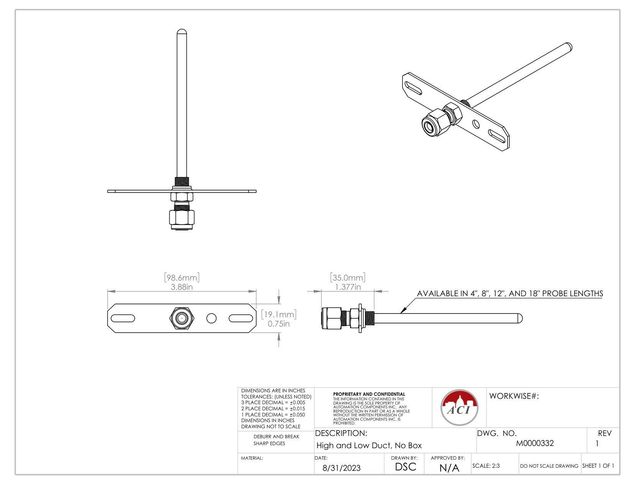

ACI A/1K-3W-LT-DO-12"
